STEP 1: FIRST USE
To preserve your battery life, we've added a plastic tab underneath the battery.
So before your first use, you'll need to open the battery compartment and remove the plastic tab.
Please note: don't forget to configure the sensor in either cadence or speed mode!
STEP 2: Choose Cadence or Speed mode
To move from speed to cadence, just remove and replace the battery.
- The green light means you are in speed mode
- The red light means you are in cadence mode
You cannot use both functions at the same time. If you want information about both speed and cadence, you'll need two sensors.
STEP 3: Installation
For cadence mode: Place the sensor on your bottom bracket.
For speed mode: Place the sensor on the hub of your wheel.
STEP 4: Connection
To connect it, turn the pedal a few times to "wake up" the sensor.
- Use with an app:
The sensor connects with all devices using ANT+ and/or Smart Bluetooth technologies. Follow the connection instructions using the menu of your app.
- Use with a cycle computer/watch:
Use the settings on your device to connect it.
Detection threshold
Cadence: 30-180 rpm
Speed: 5-85 km/h
Power
After installing the battery, the sensor can typically be used for 500 hours, but there may be differences related to temperature or environmental factors.
When the sensor is not connected for use, be sure that it isn't installed on the bike, as this will cause the sensor to wake up frequently and use up the battery faster.
Energy savings
To reduce energy consumption and extend its life span, if the sensor does not detect any data for 60 seconds, it will go into sleep mode. It will automatically wake up and start transmitting data when activity resumes.
IN THE BOX

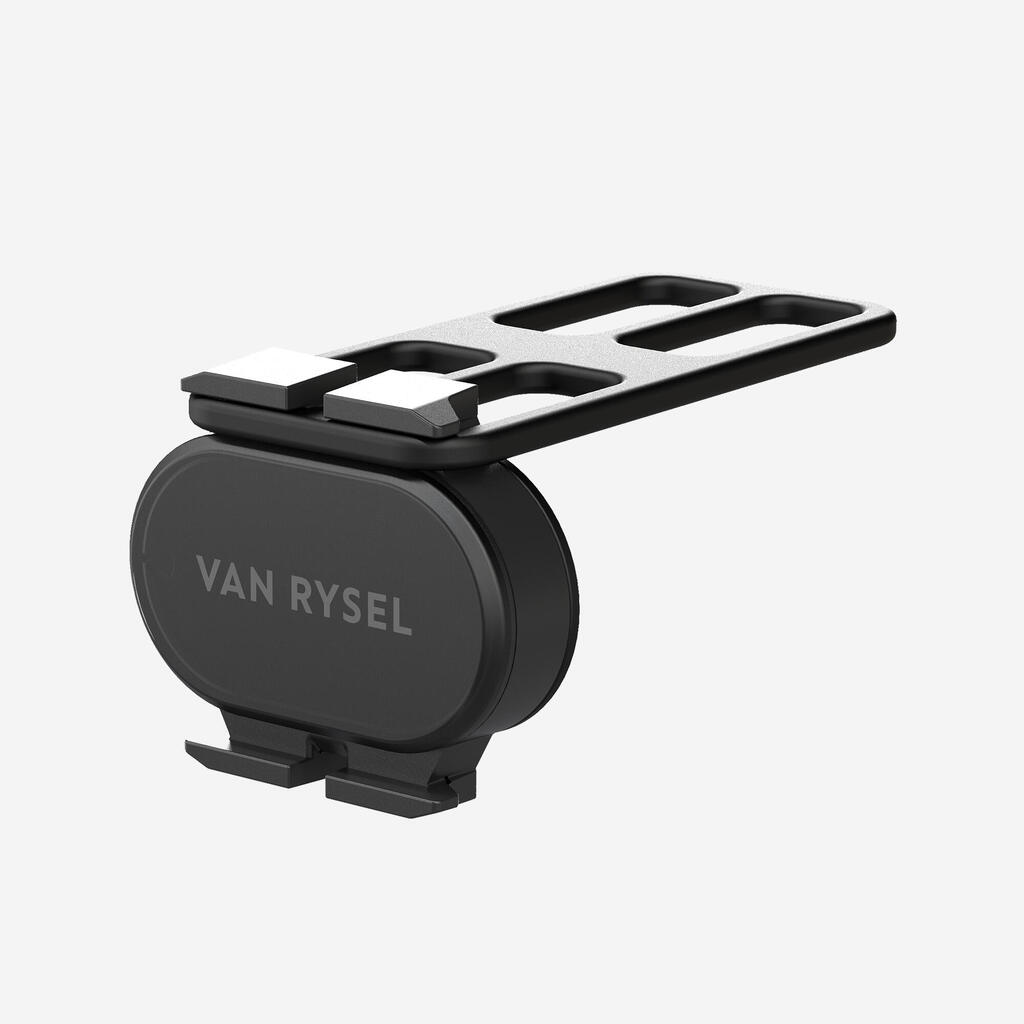

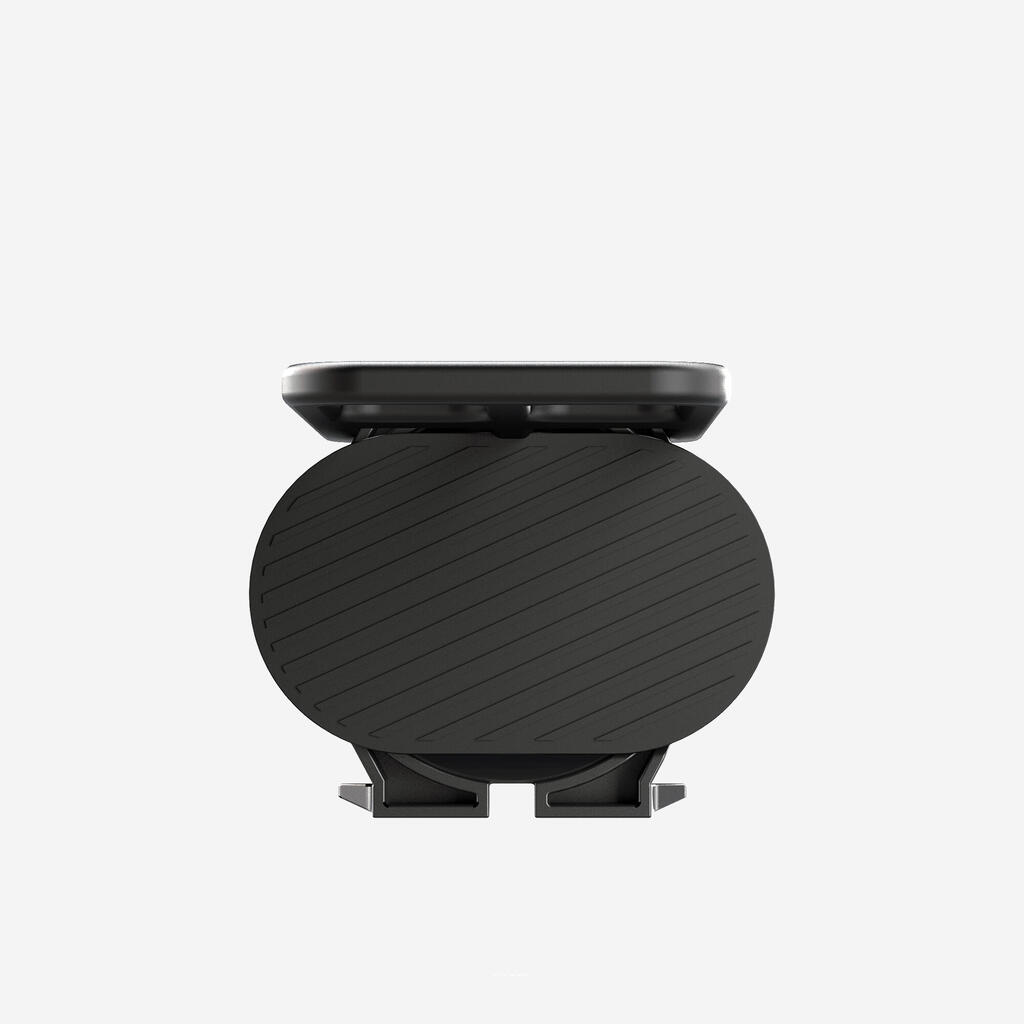

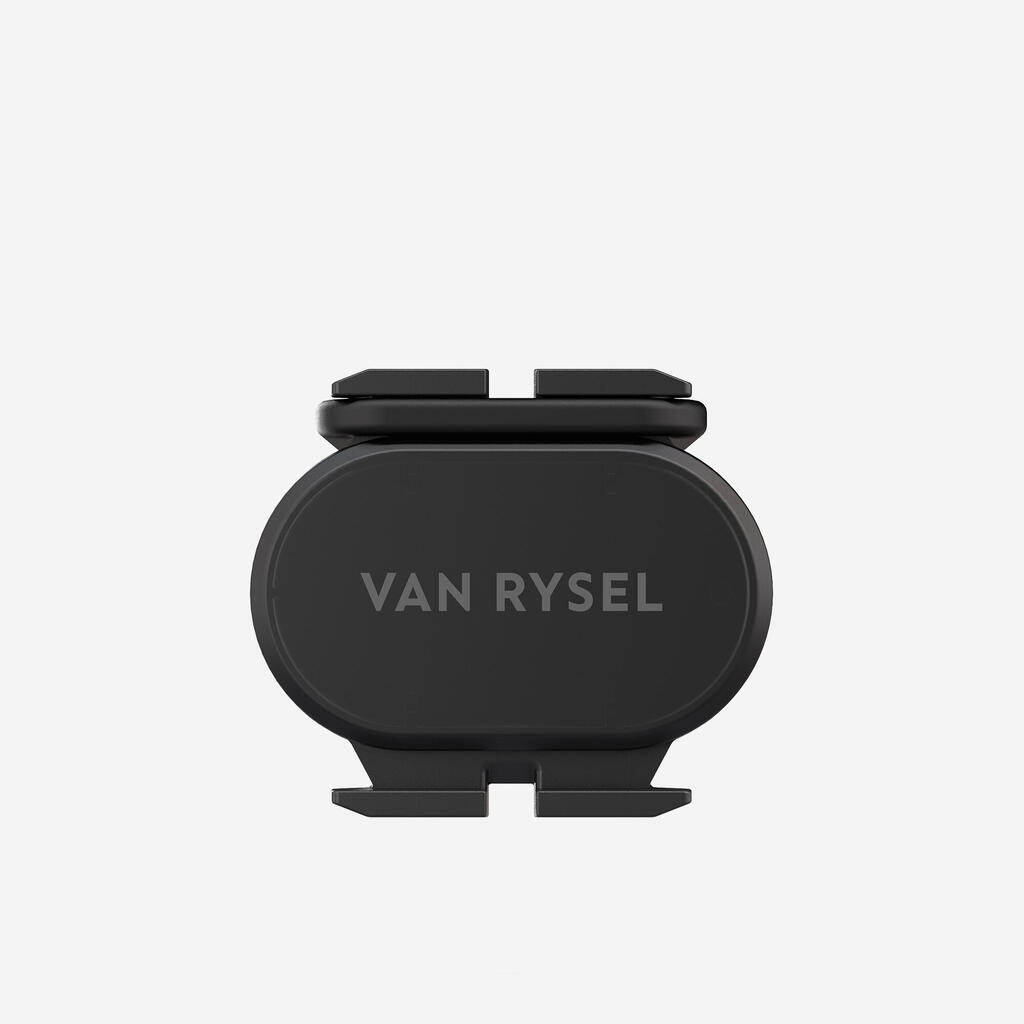

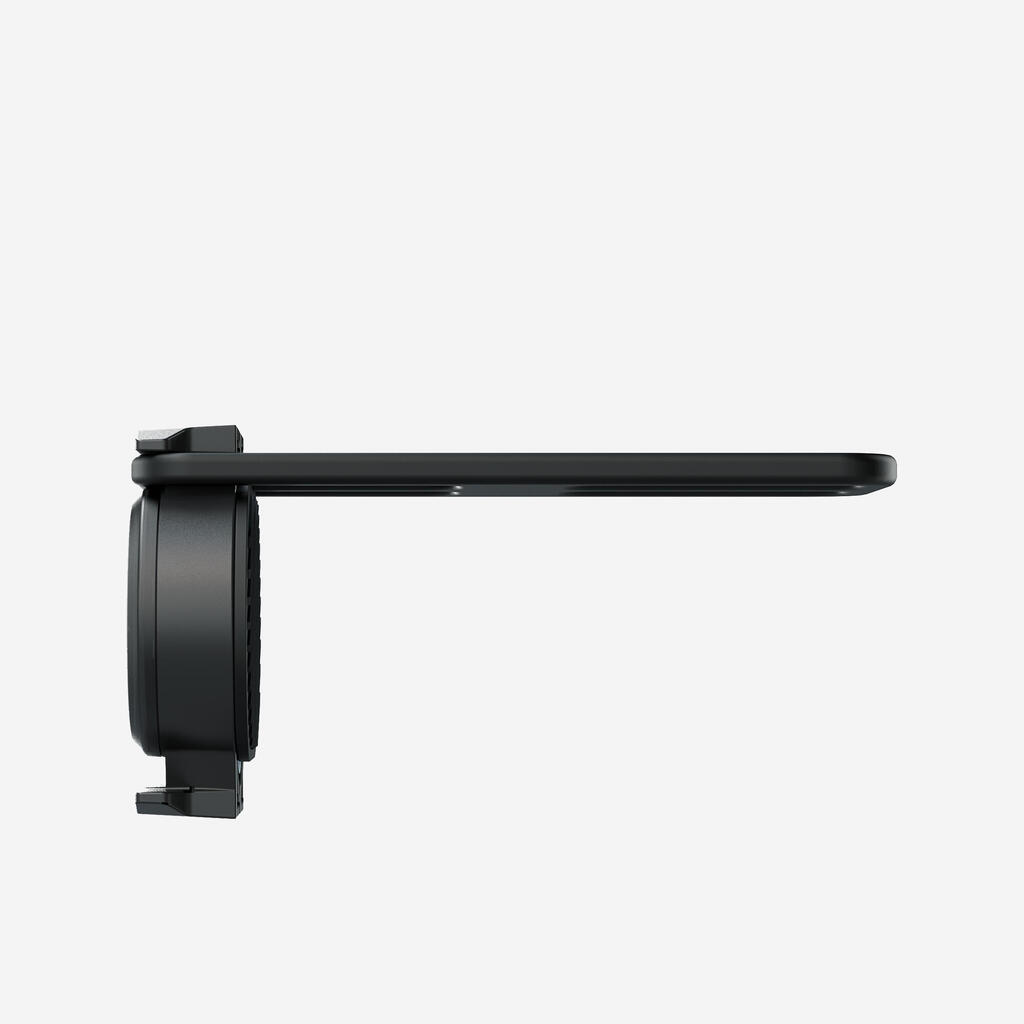

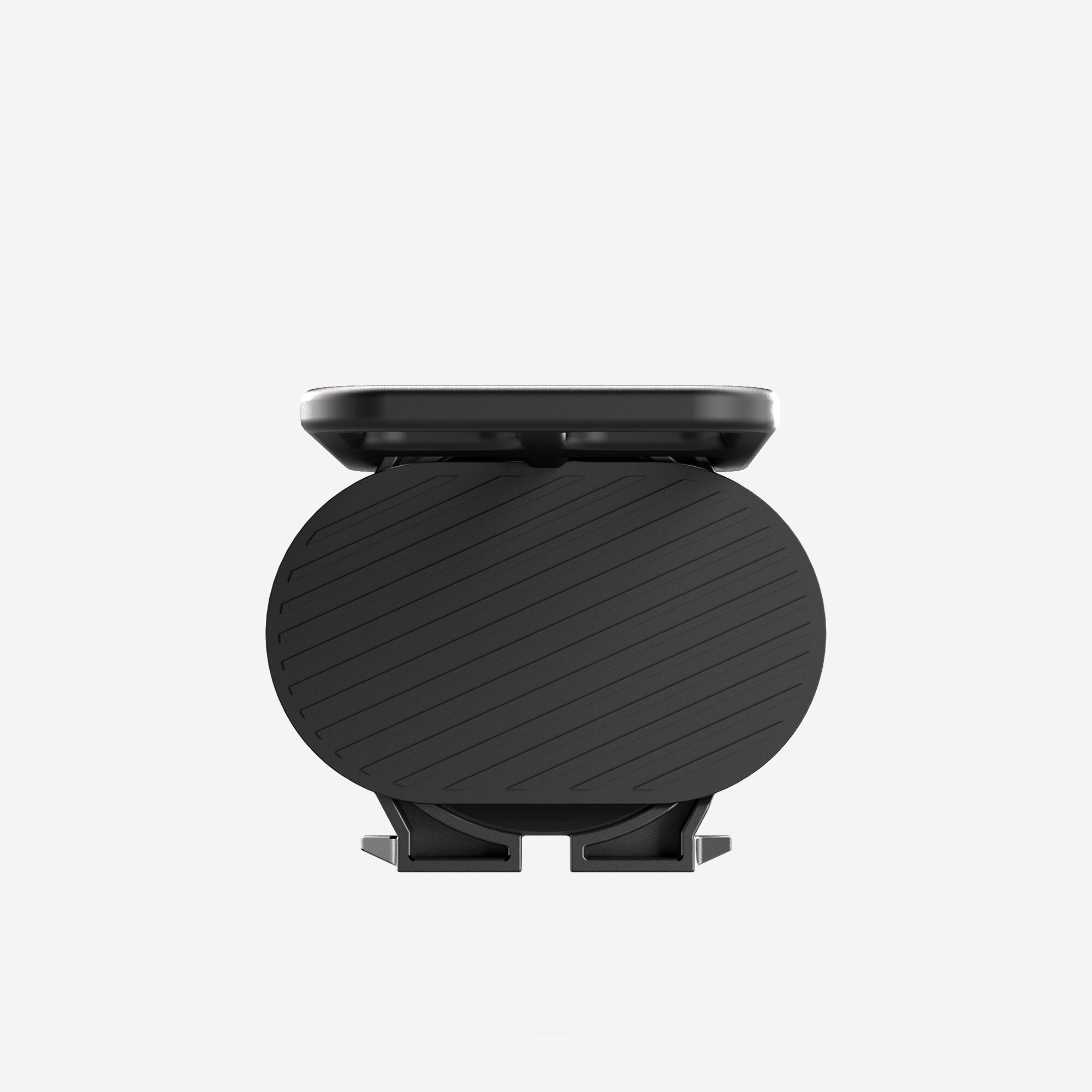

1 cadence sensor
1 rubber clamp for the bottom bracket (cadence mode)
1 rubber clamp for the hub (speed mode)
1 CR2032 battery
