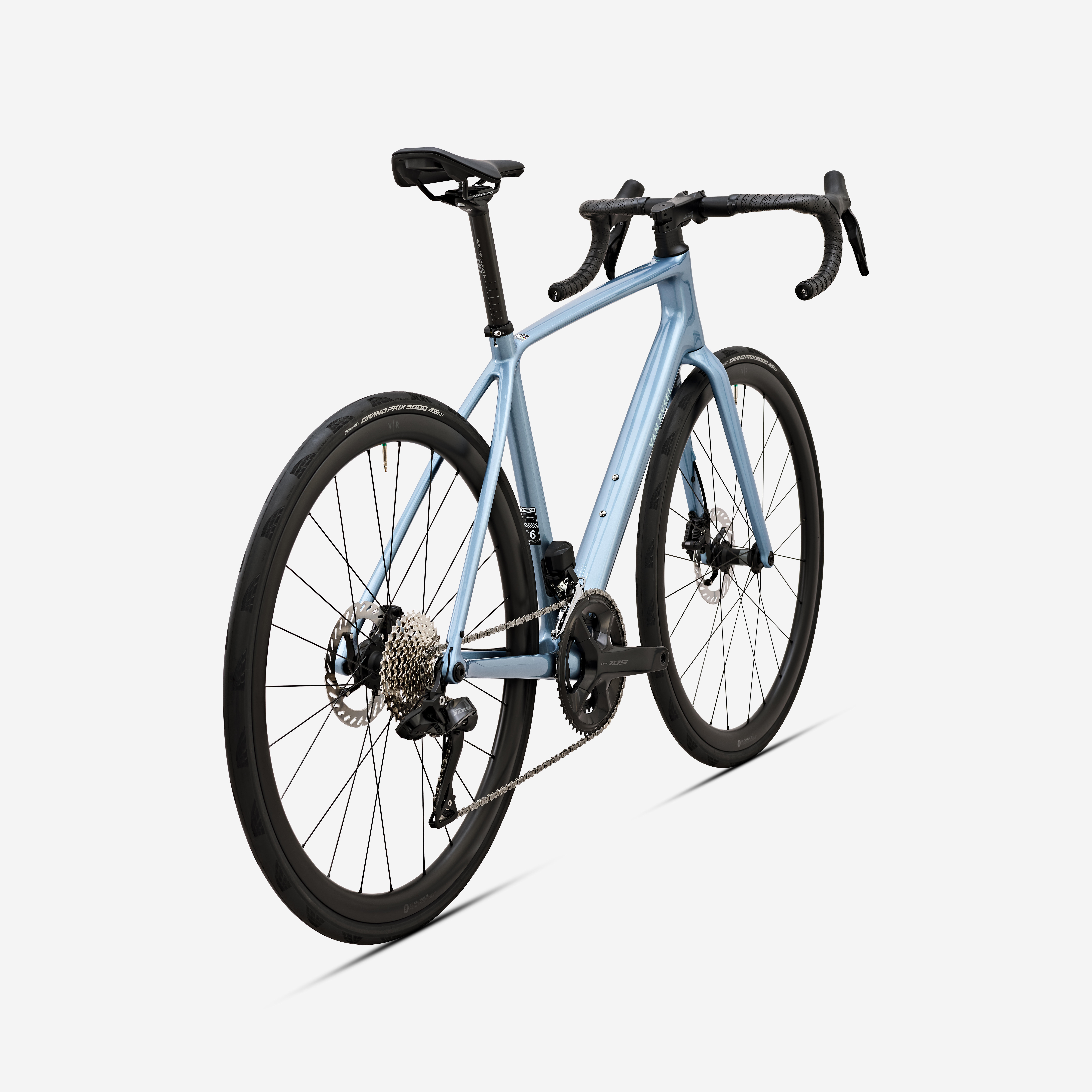

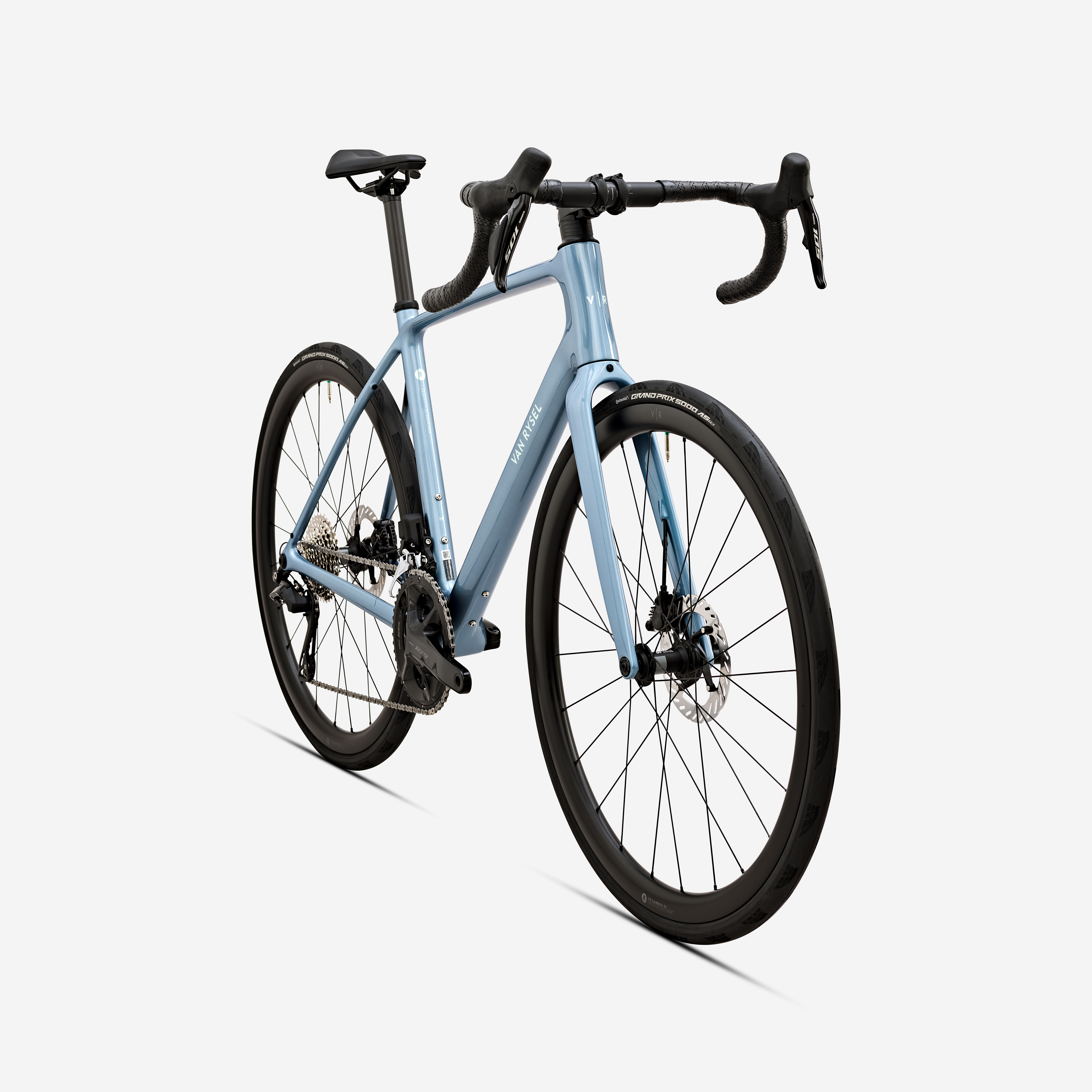

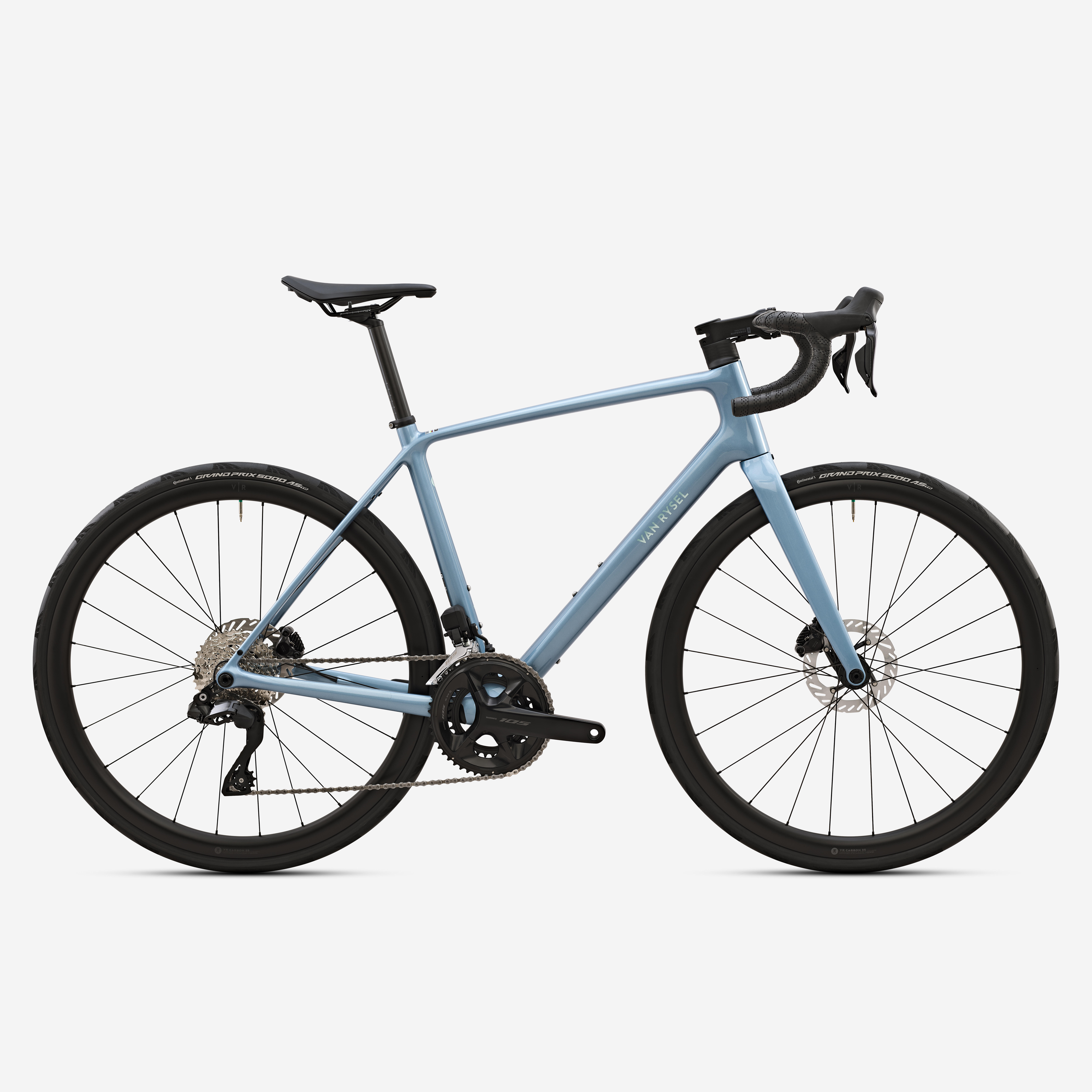

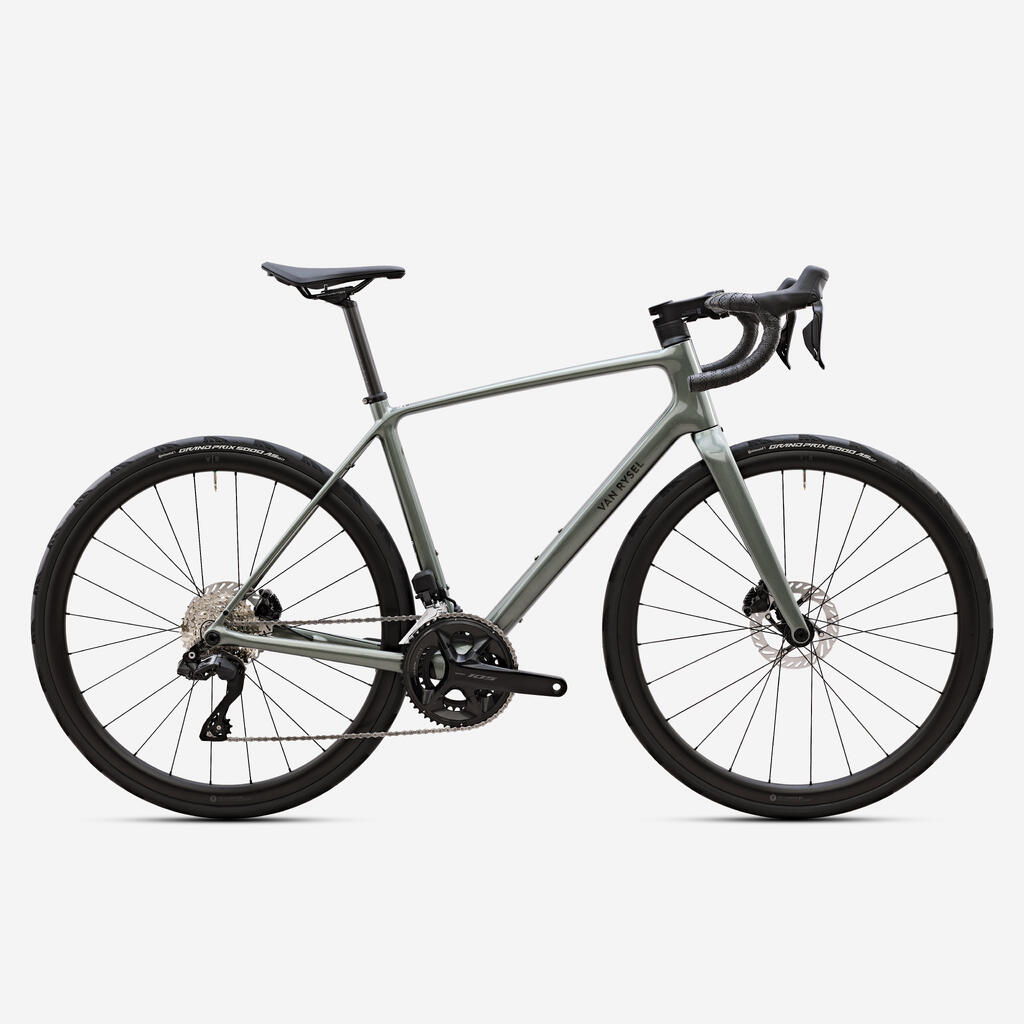

Meet the EDR CF ULTRA
The EDR CF ULTRA is our brand-new, ultra-light endurance road bike, which combines comfort and performance.
Its ergonomic geometry ensures a comfortable riding position, letting you clock up the miles with ease—whether in flat or mountainous regions. Every component has been carefully selected to make this bike your ideal companion, from the most scenic sportives to the toughest ultra-distance races.

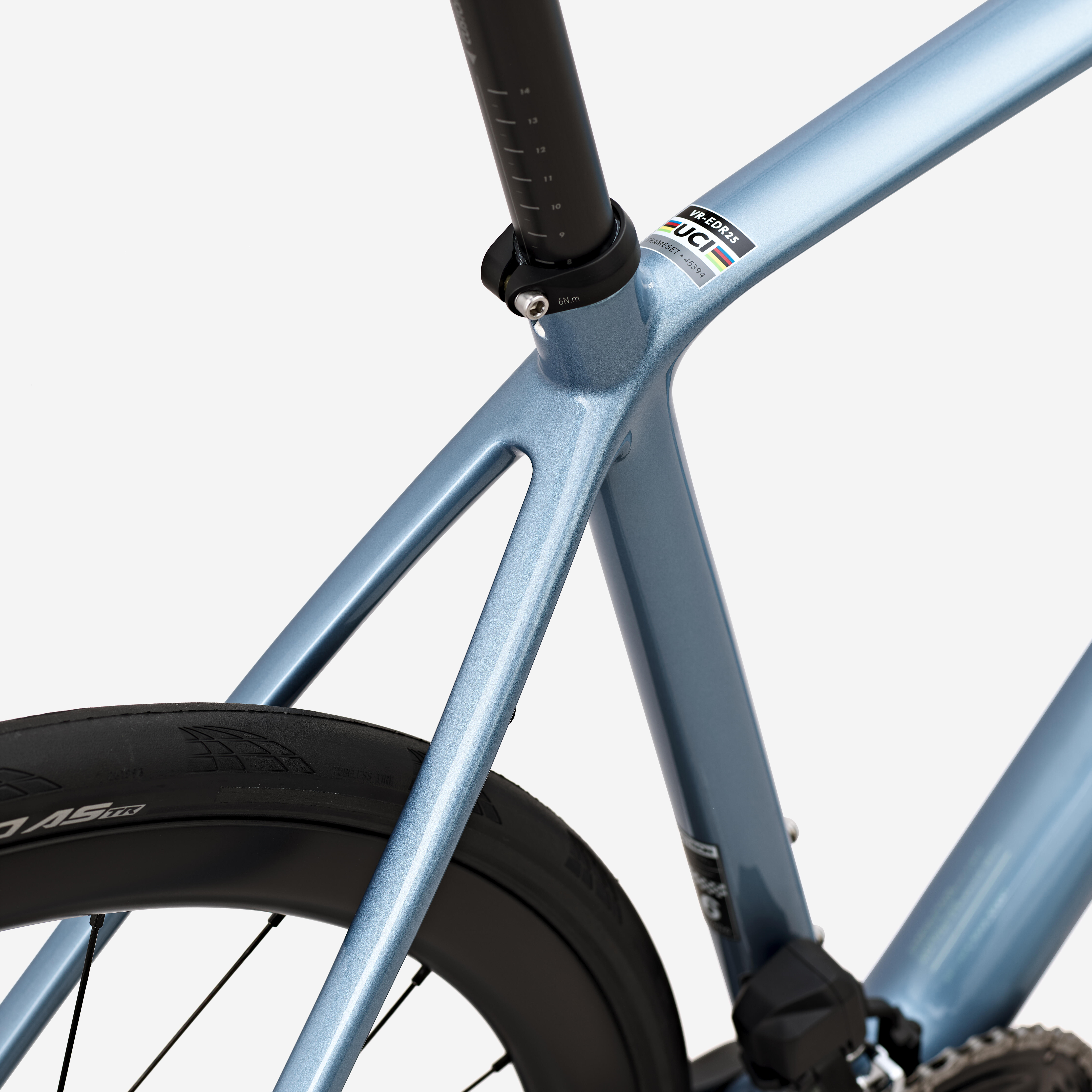

Carbon frame and fork
The frame of the EDR CF ULTRA was entirely developed under our care and designed with high modulus carbon fiber so as to make the bike both lightweight and stiff enough for comfortable, pleasant riding.
Frame weight: 830gr in size M
The fork is also entirely made of carbon.
Fork weight: 400gr
The measured clearance of the frame and fork is 38mm.

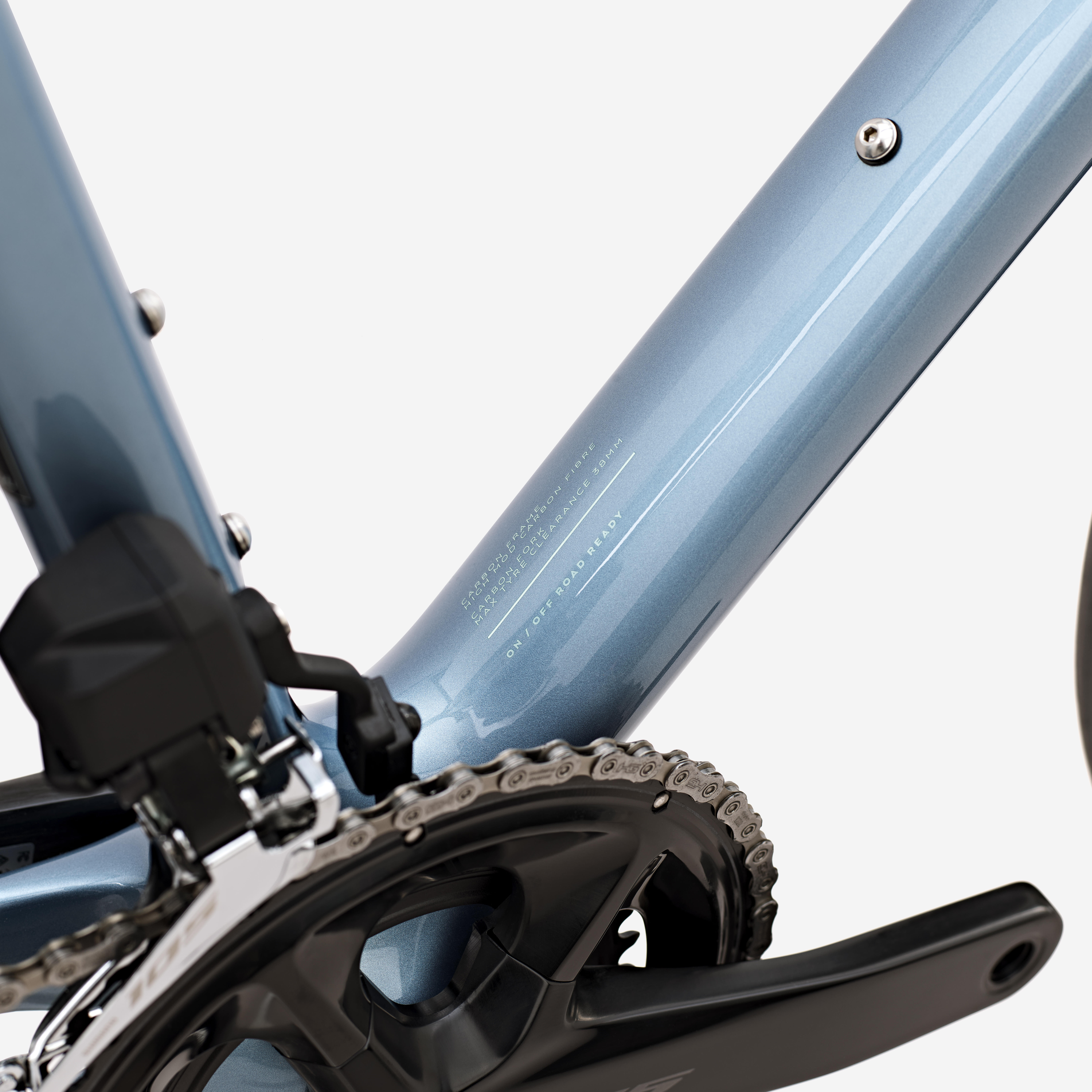

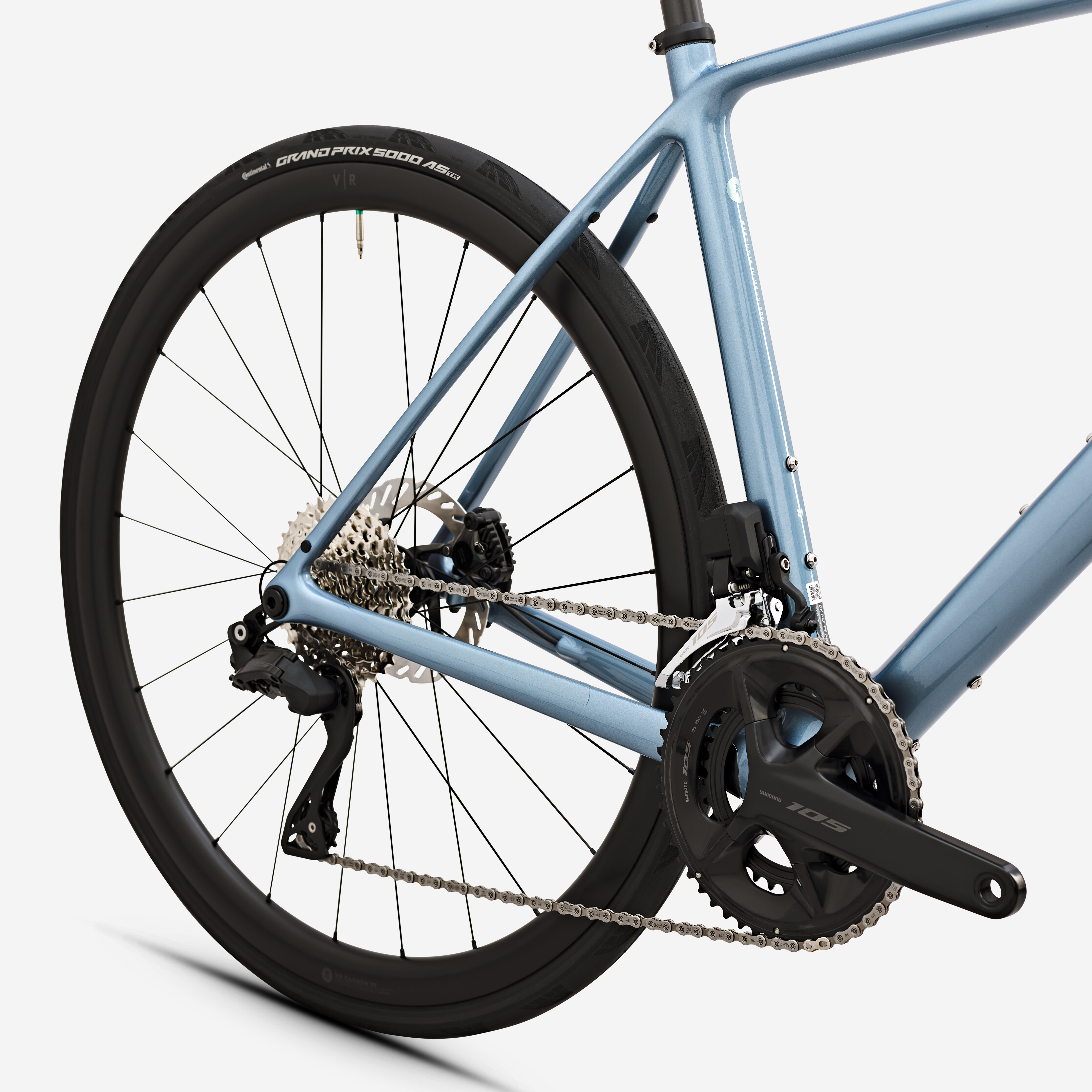

SHIMANO 105 Di2 DRIVE TRAIN
SHIMANO 105 Di2 groupset with inbuilt INPEAK power sensor.
50/34 double chainwheel and 12-speed 11/36 cassette (11-12-13-14-15-17-19-21-24-28-32-36), perfect for routes with elevation.
Shimano R7100 bottom bracket
Length of cranks:
XS:165mm
S:170mm
M:172.5mm
L-XL:175mm
BRAKING SYSTEM
SHIMANO brake system, R7170 reference levers
Centerlock disc brakes
160mm at front and rear
The brake guard can be adjusted to fit your hand size.
Important: the disc brakes need bedding in: this is essential for efficient, noiseless braking.All you have to to is brake gradually 20 times at a low speed (20 km/h), then repeat at 30 km/h. Make sure to bed in both brakes.

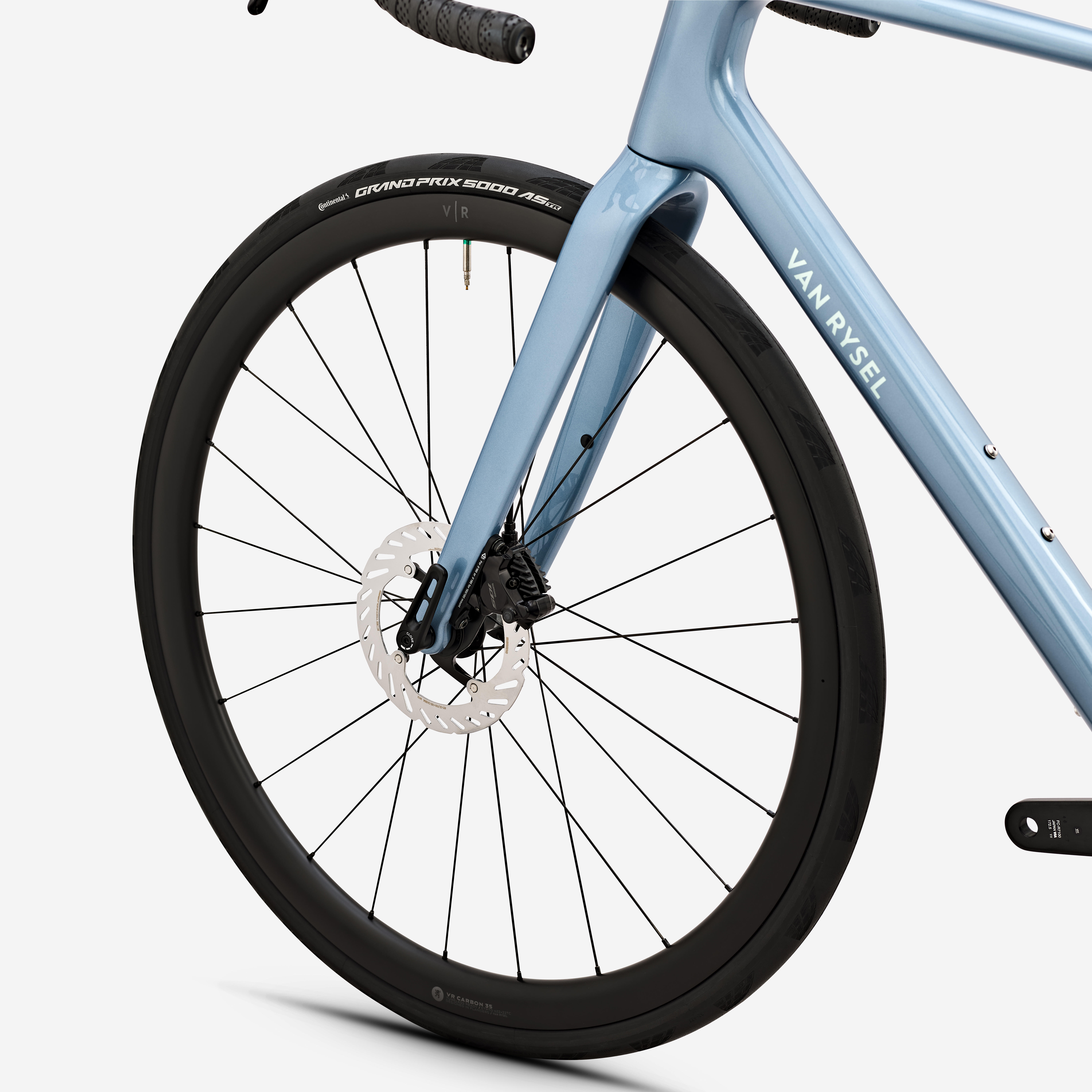

VR35 CARBON WHEELS
Equipped with new VAN RYSEL VR35 carbon wheels.
These carbon wheels are designed for cyclists who seek propulsion and lightness to ride on hilly to mountainous terrain.
Pair of VR 35 Carbon 700c wheels [12x100 - 12x142 ]
Rim height: 35 mm
Carbon rim with hooks compatible with tubeless and tubetype tyres
Internal width:22TC
External width: 30 mm
Hub:DT swiss DT370 Classic
Cassette body DT Swiss Ratchet LN:
Weight of the pair of wheels:1500 g
CONTINENTAL "ALL SEASON" tyres for all-weather riding
The EDR CF ULTRA is equipped with GP5000 all-season tubeless ready tyres in size 700x32, providing the bike with added comfort and making it suitable for all-weather riding.
The bike comes equipped with inner tubes as standard.
Important: The tyre pressure is important to ensure you get the best balance between comfort and performance, particularly based on your weight. Check what the best pressure is for you.
CARBON POSITIONING ELEMENTS

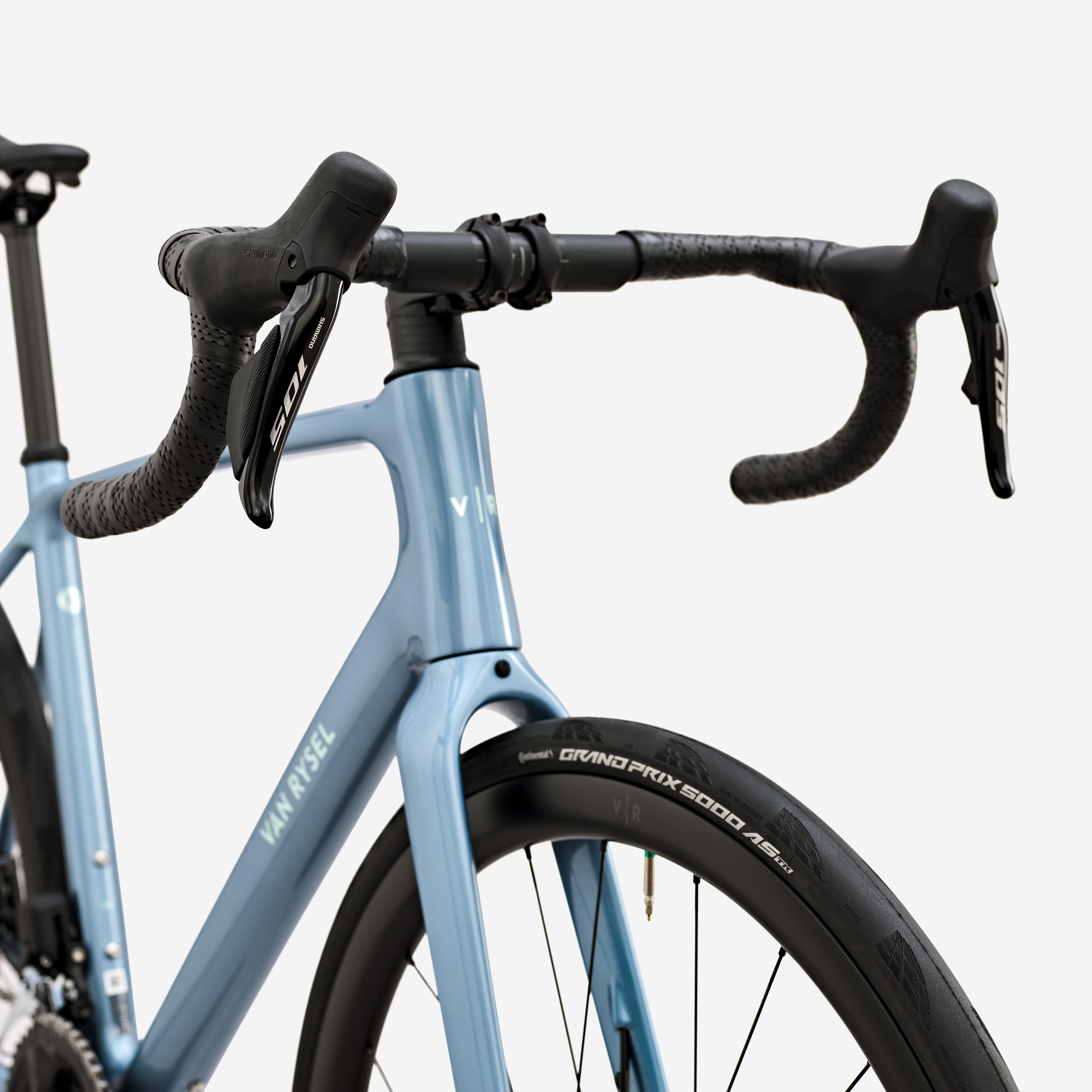

Carbon VR handlebar featuring 8° flair and an ergonomic shape on the top for reduced pressure points and the option of fitting extensions. EDR ULTRA gel bar tape.
Handlebar width: XS: 380 mm
S & M: 400 mm
L & XL: 420 mm

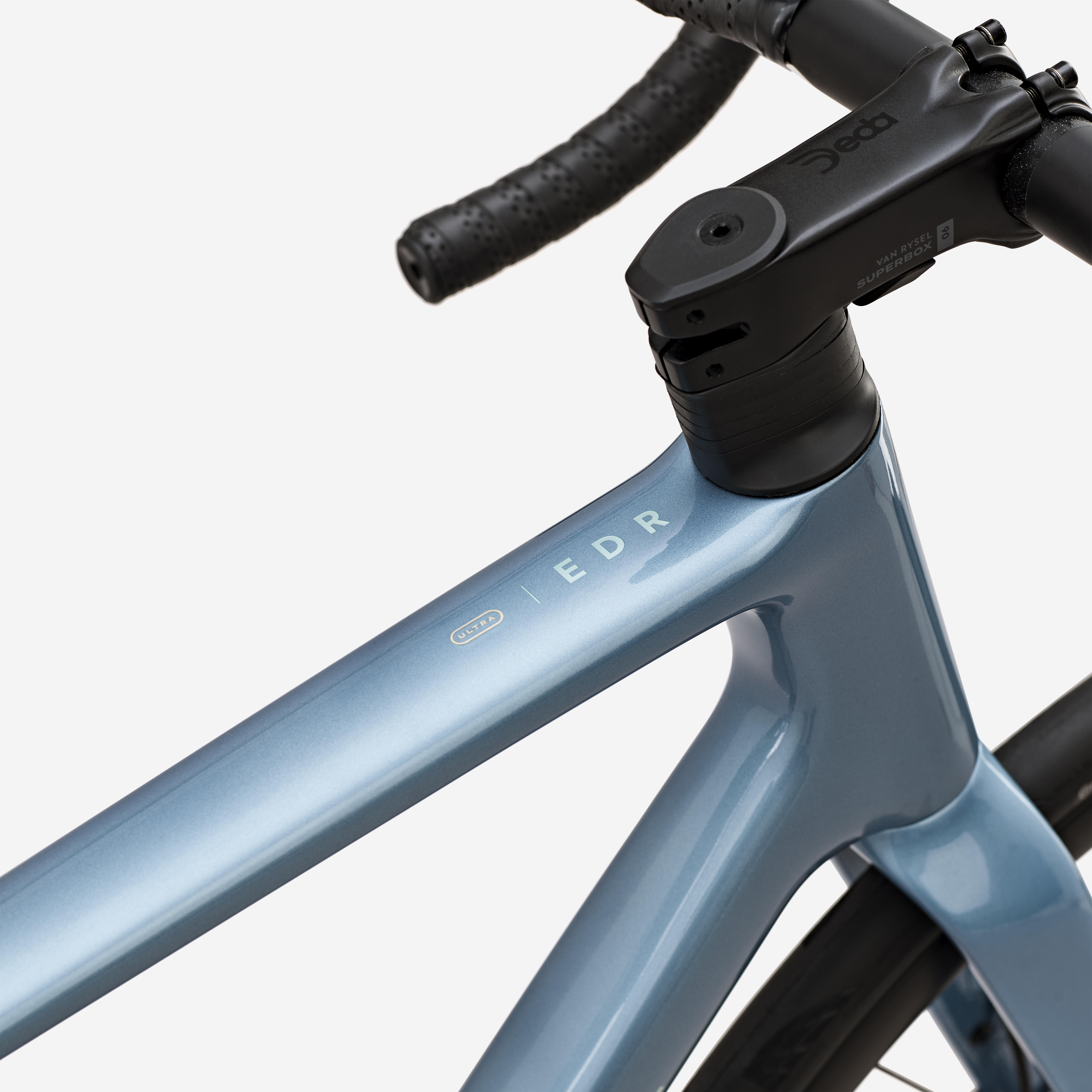

DEDA superbox stem
XS: 70 mm
S: 80 mm
M: 90 mm
L: 100 mm
XL: 110 mm
Carbon VR seat post of 27.2mm diameter.
Seat post height:
XS: 250mm
S - M - L: 350mm
XL: 400mm

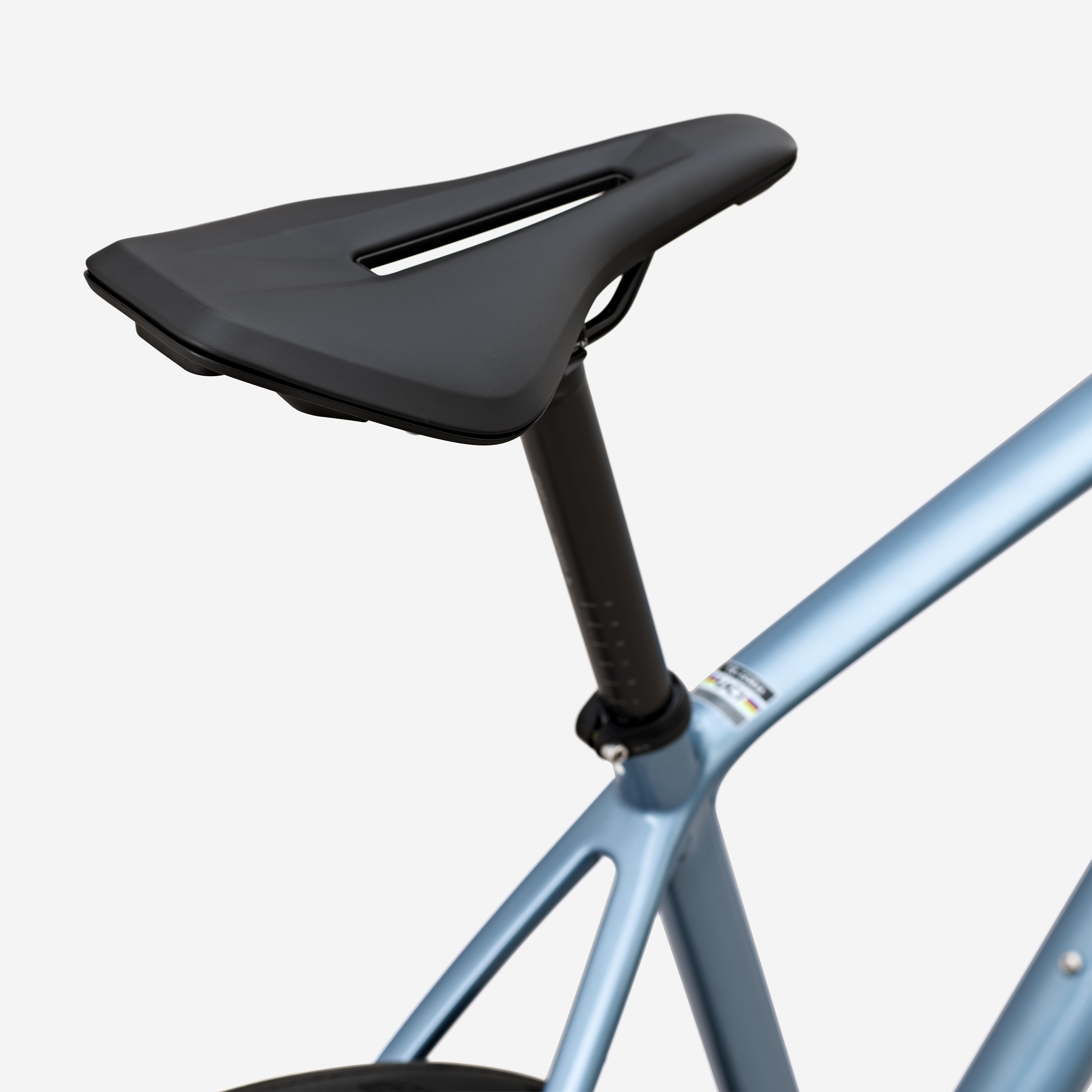

LIGHT saddle: 155mm
COMPATIBLE ACCESSORIES
The frame and fork are compatible with the front and rear mudguards.
The EDR ULTRA comes with a box that contains:
- Platform pedals, we recommend using clipless pedals to take full advantage of this bike's performance
- Di2 charger
- 2 brake cables
- tubeless valves
- 1 bell
- 1 front and rear light
- 1 torque spanner
MAINTAINING YOUR BIKE
To get the most out of your bike and make sure its components last as long as possible, it's important to give your bike some maintenance after each ride and to store it in a dry place.
We've got a whole bunch of tips for you, check them out on support.decathlon.com.
When using bags or other accessories, you can use the following transparent protective stickers: 8486947.
Resistant to temperature variations, water, tears and UV rays

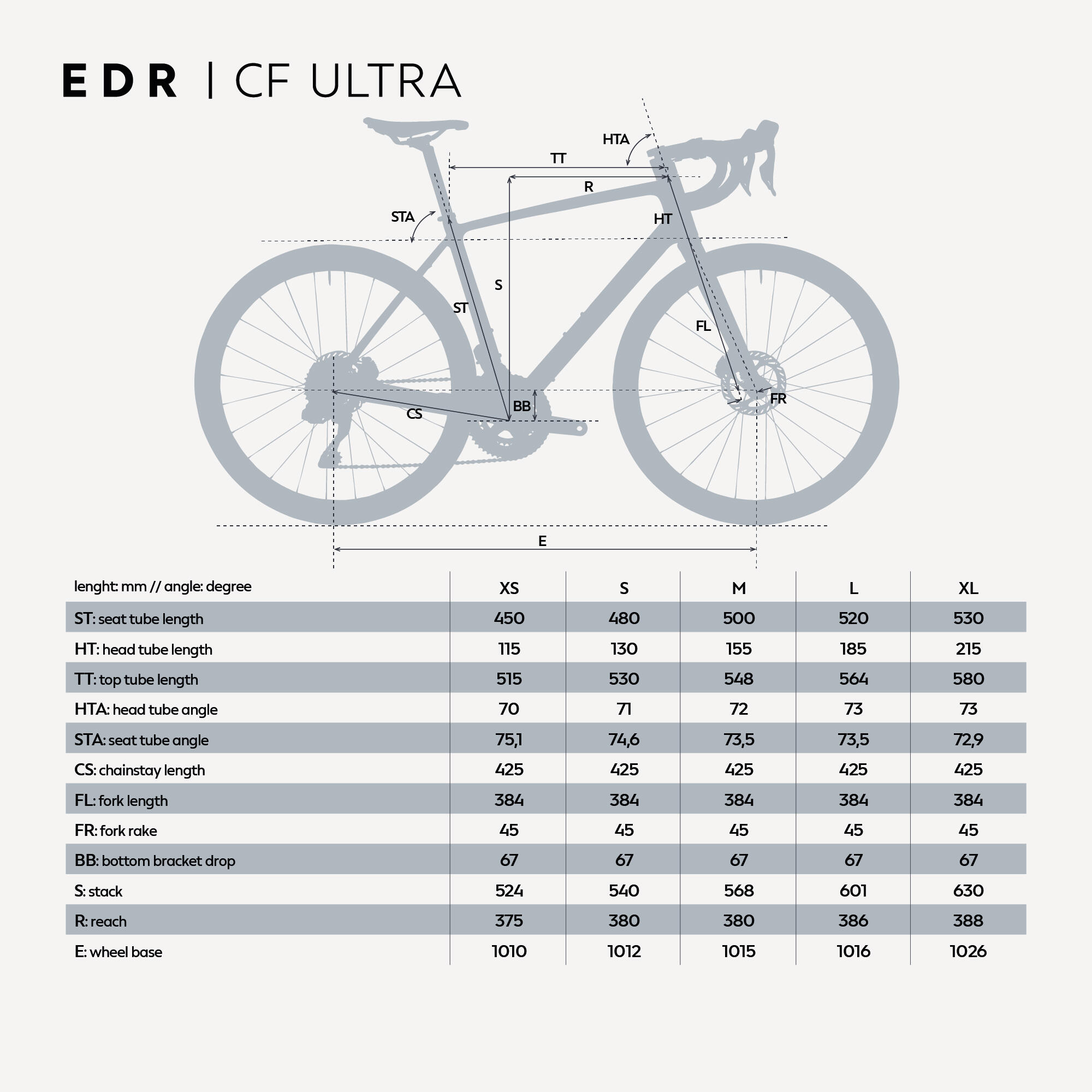

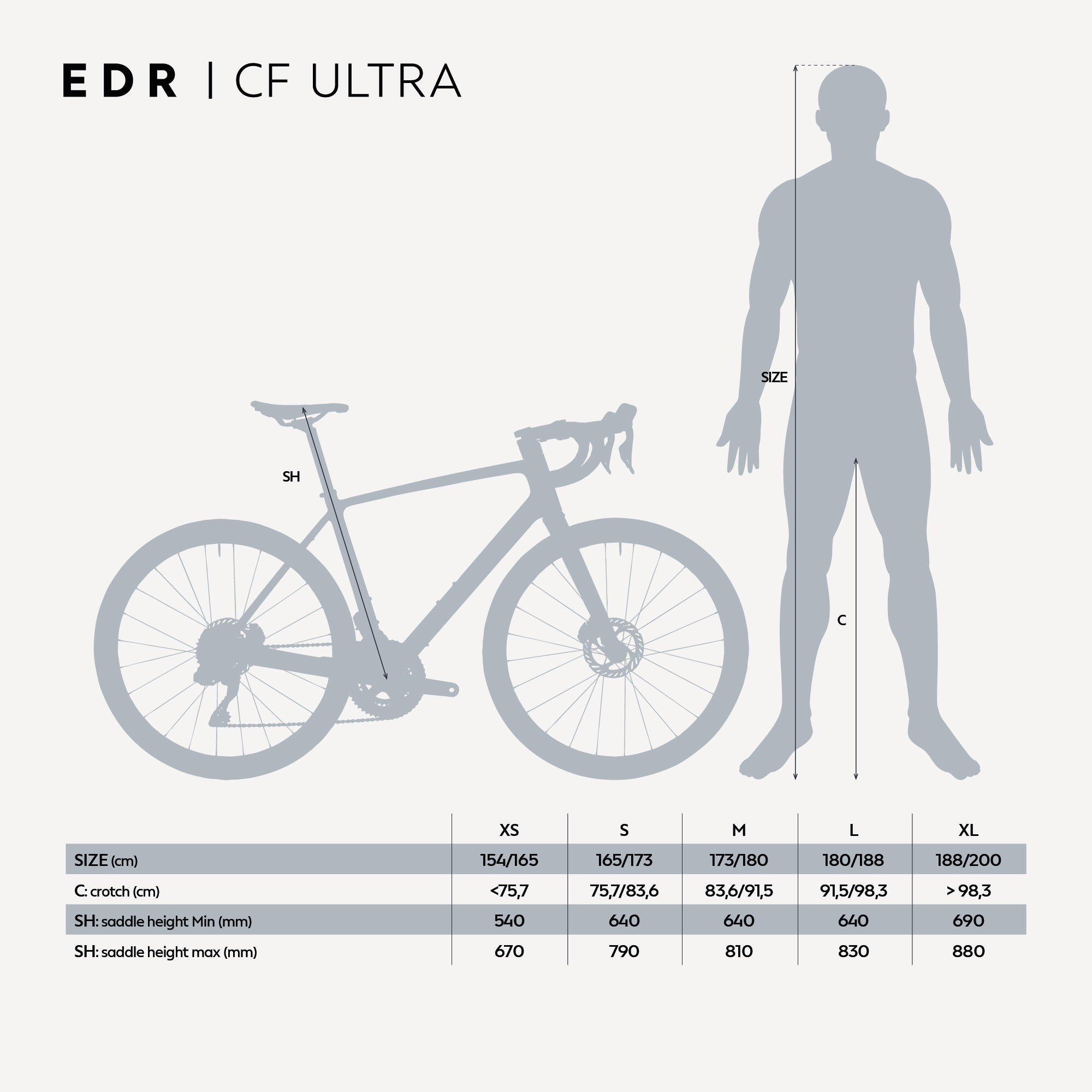

Sizes & Weight
Bike weight in kg:
XS : 8.15
S : 8.3
M:8.35
L: 8.4
XL: 8.4
The maximum load (user + load) is 110 kg whatever the bike size.
