Weight
S: 11.1 kg
M: 11.3 kg
L: 11.4 kg
XL: 11.6 kg
Suspension
RockShox Reba RL 100 mm
32 mm stanchions
Solo Air cartridge
Post mount brakes
Thru axle
BOOST format
Combolock II handlebar lockout (2 positions: open and closed)
Weight: 1650 g
Brakes
Sram Level TL hydraulic
Sram G2 rotors: 180 mm front and 160 mm rear
6-bolt rotors

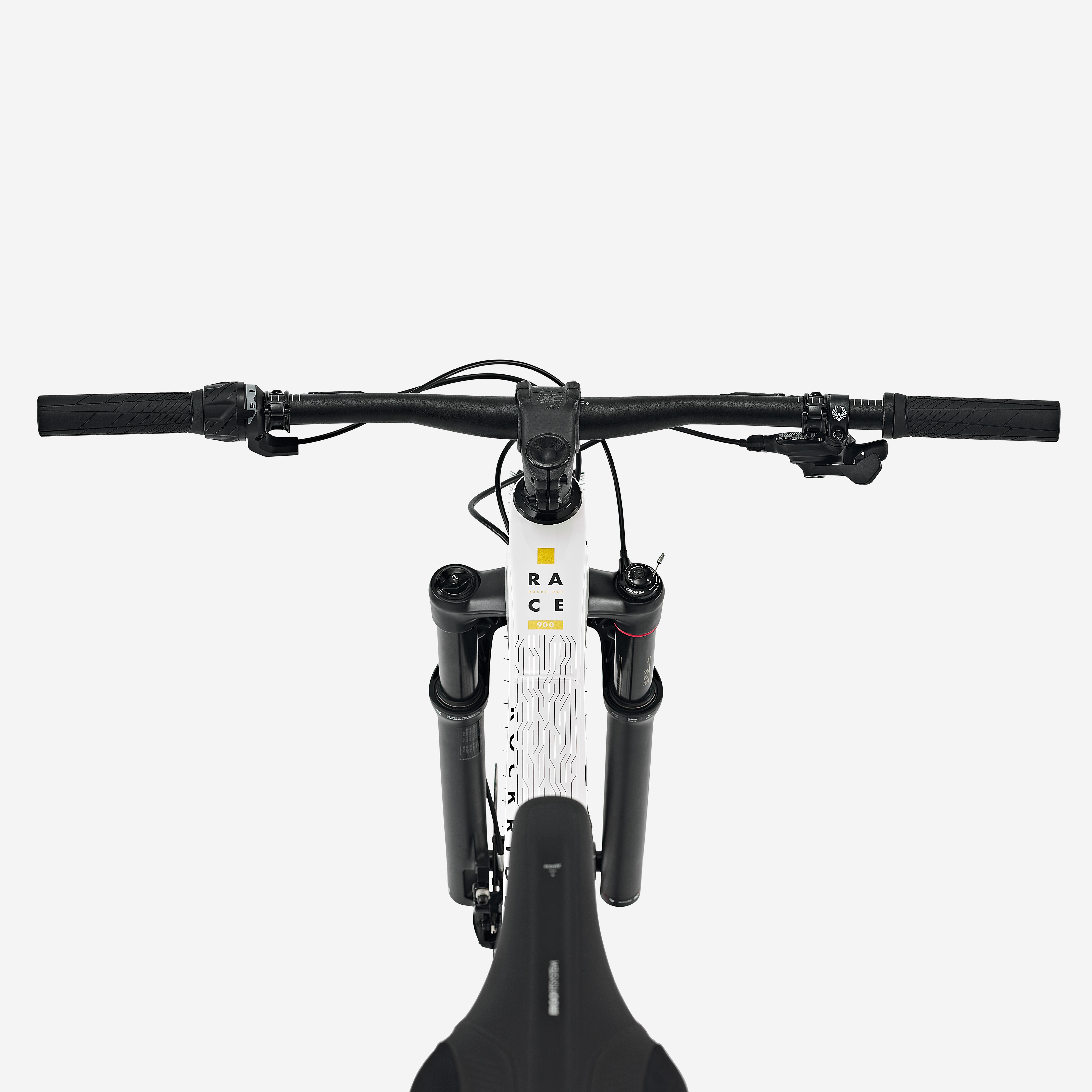

Riding position
Rockrider aluminium stem
-20° angle
60 mm in size S
70 mm in size M
80 mm in size L
90 mm in size XL

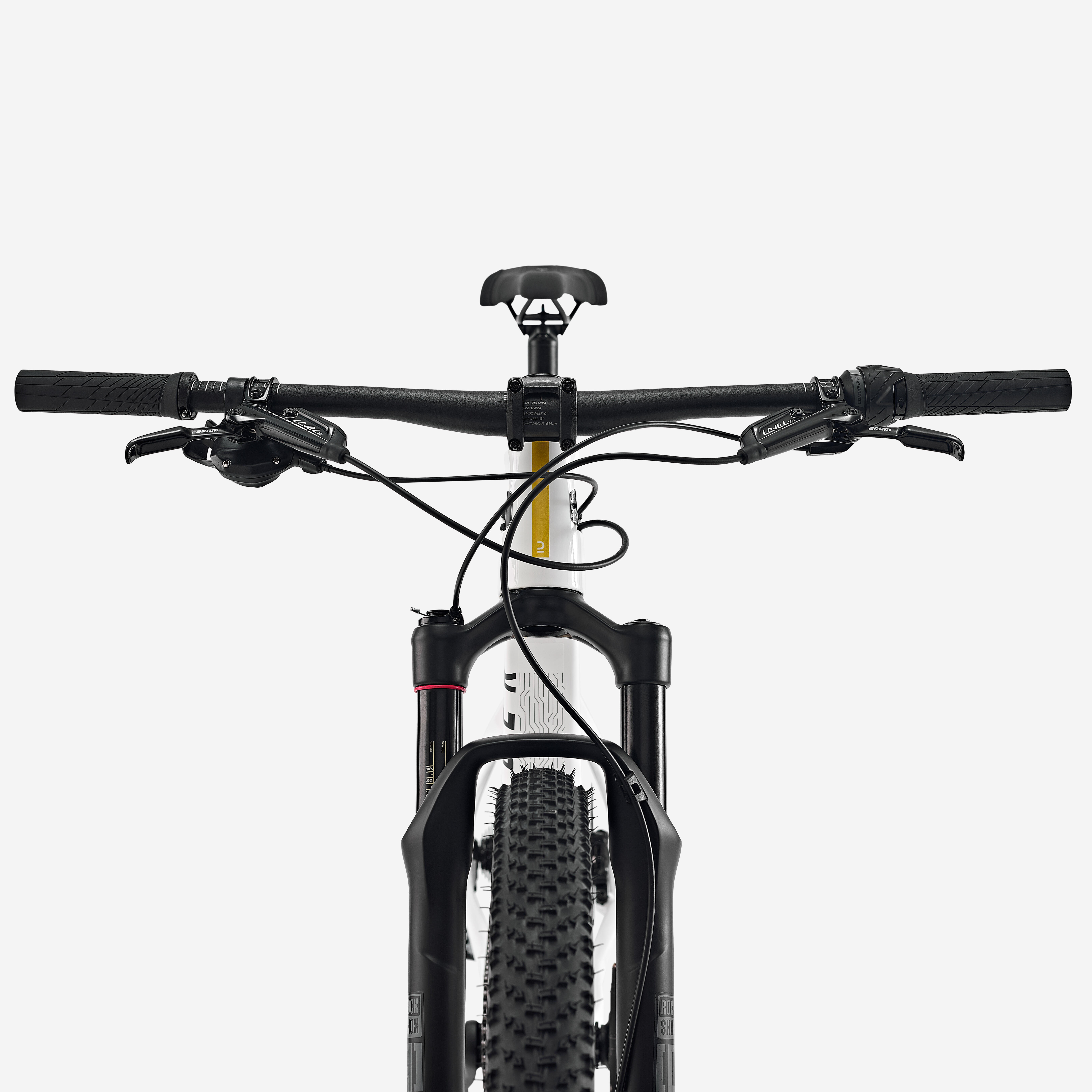

Rockrider aluminium flat handlebar
720 mm wide
6.5° angle
256 g
Grips: Rockrider 900 Lock On

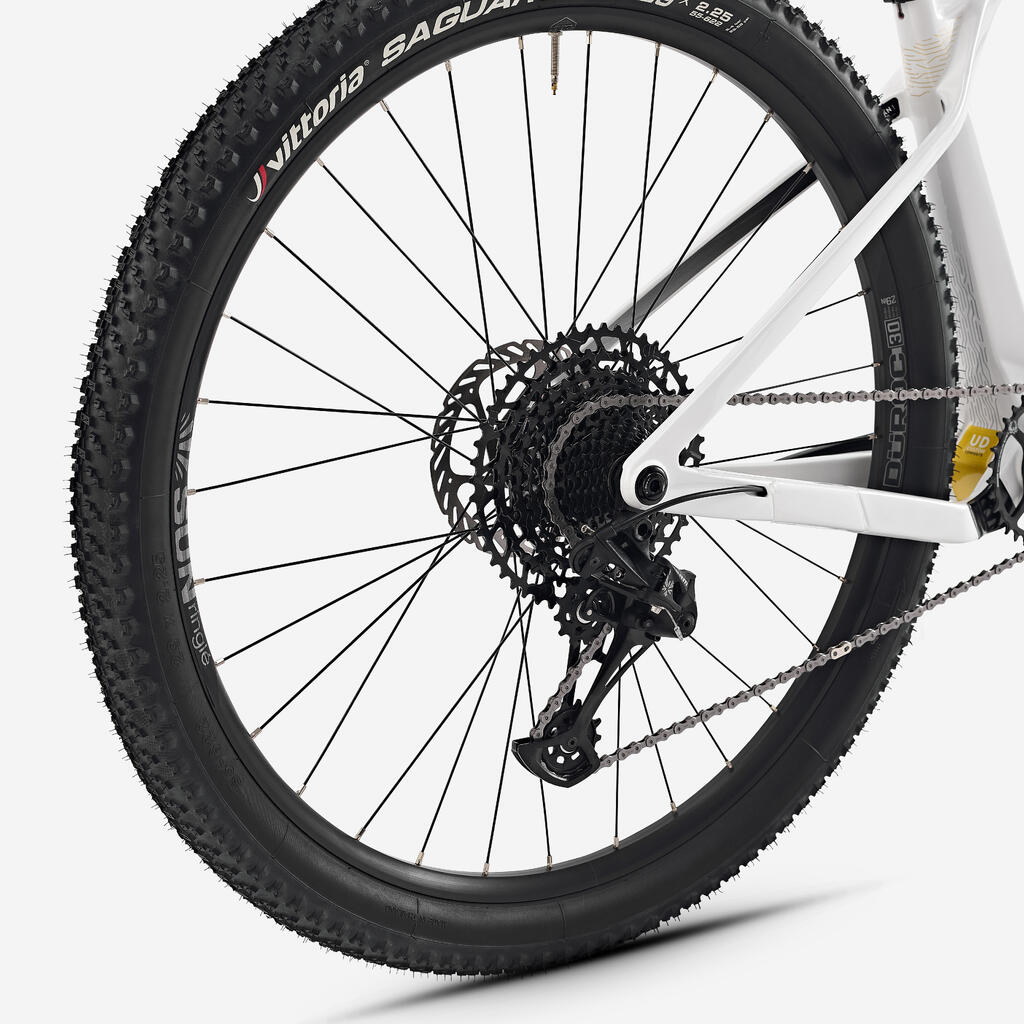

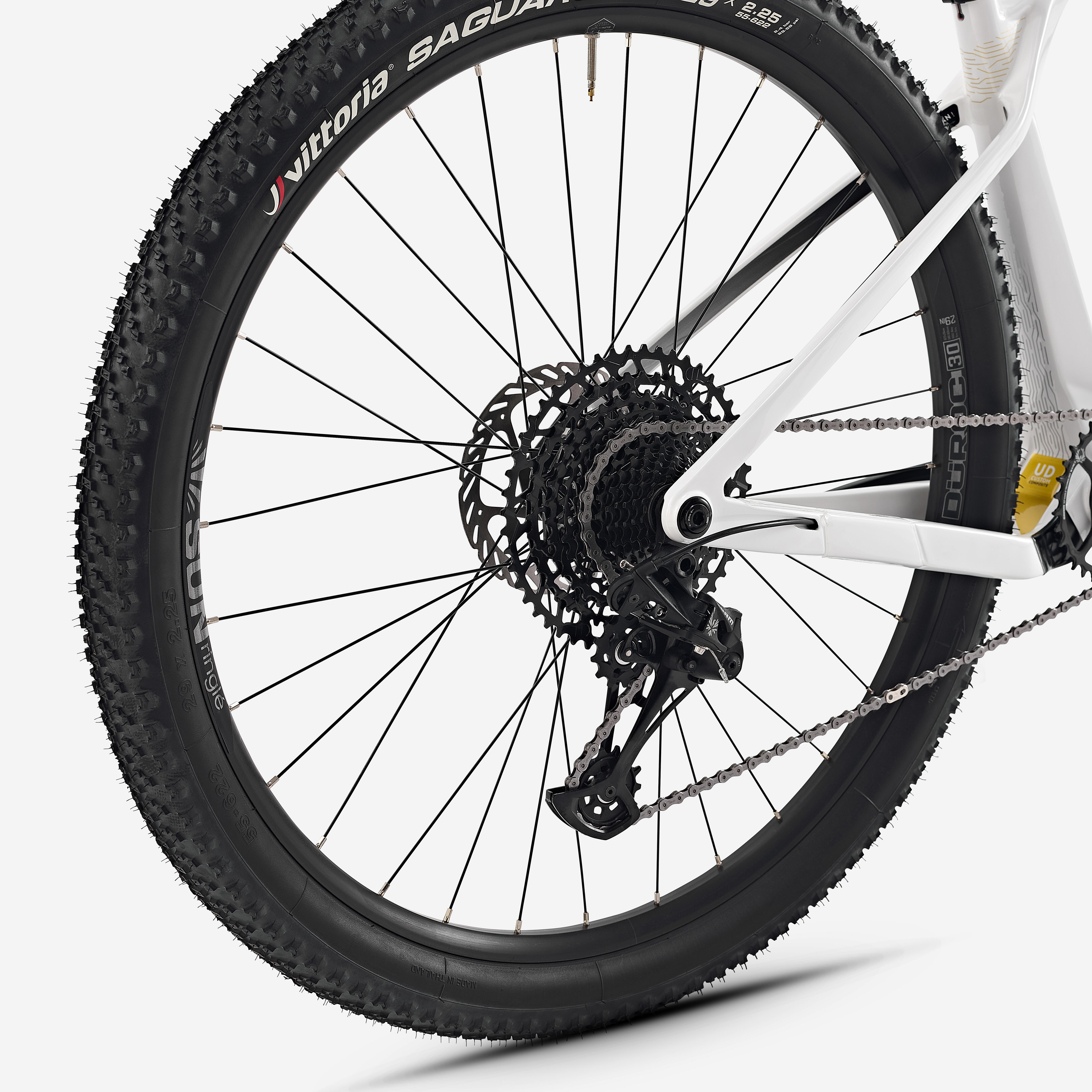

Drivetrain
Sram NX Eagle 12-speed rear derailleur
Sram NX Eagle shifter
Sram X1 1000 Eagle chainset (170 mm in S and M, and 175 mm in L and XL)
32T chainring (compatible with 30, 34 and 36T)
SRAM PG1230 11-50 cassette
Sram NX Eagle chain
Sram PF 92 bottom bracket
ACCESSORIES INCLUDED
Your mountain bike comes with a bell, lighting, wheel reflectors, and pedals.

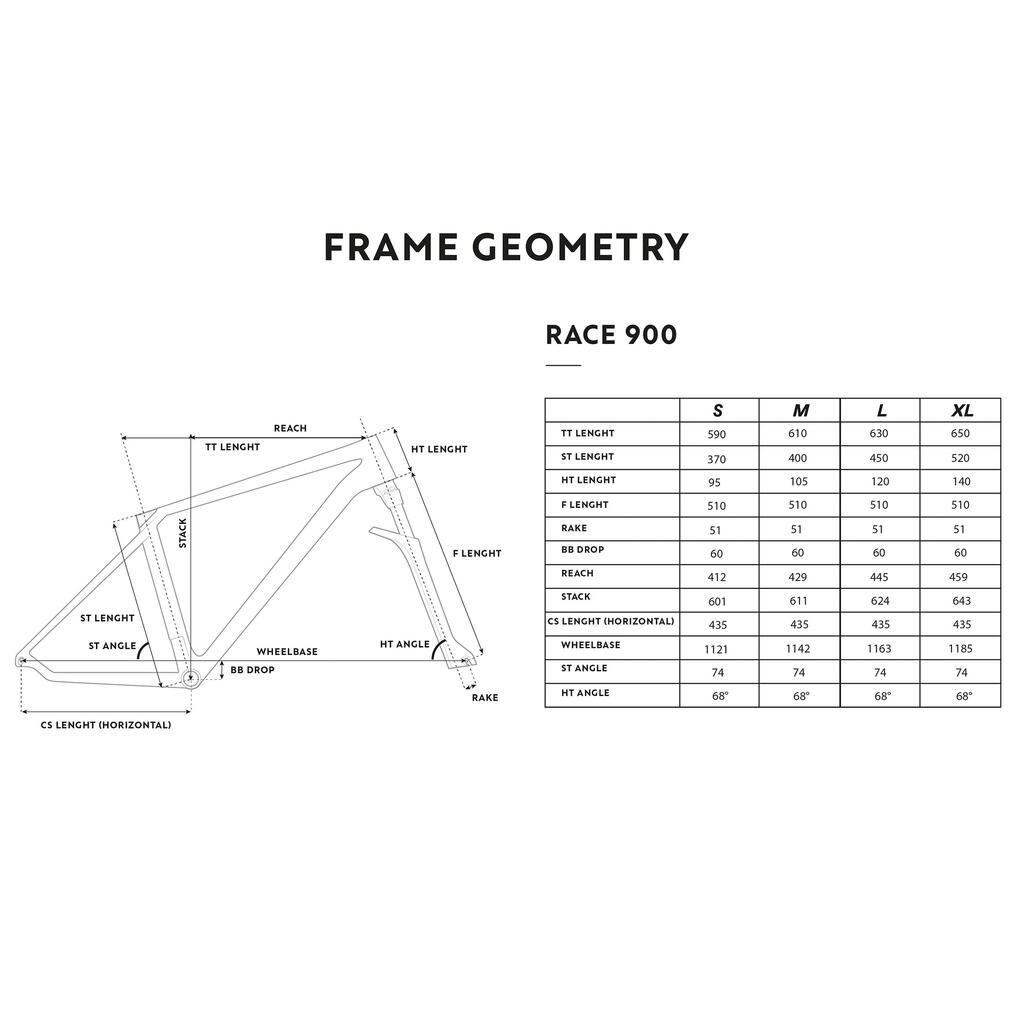

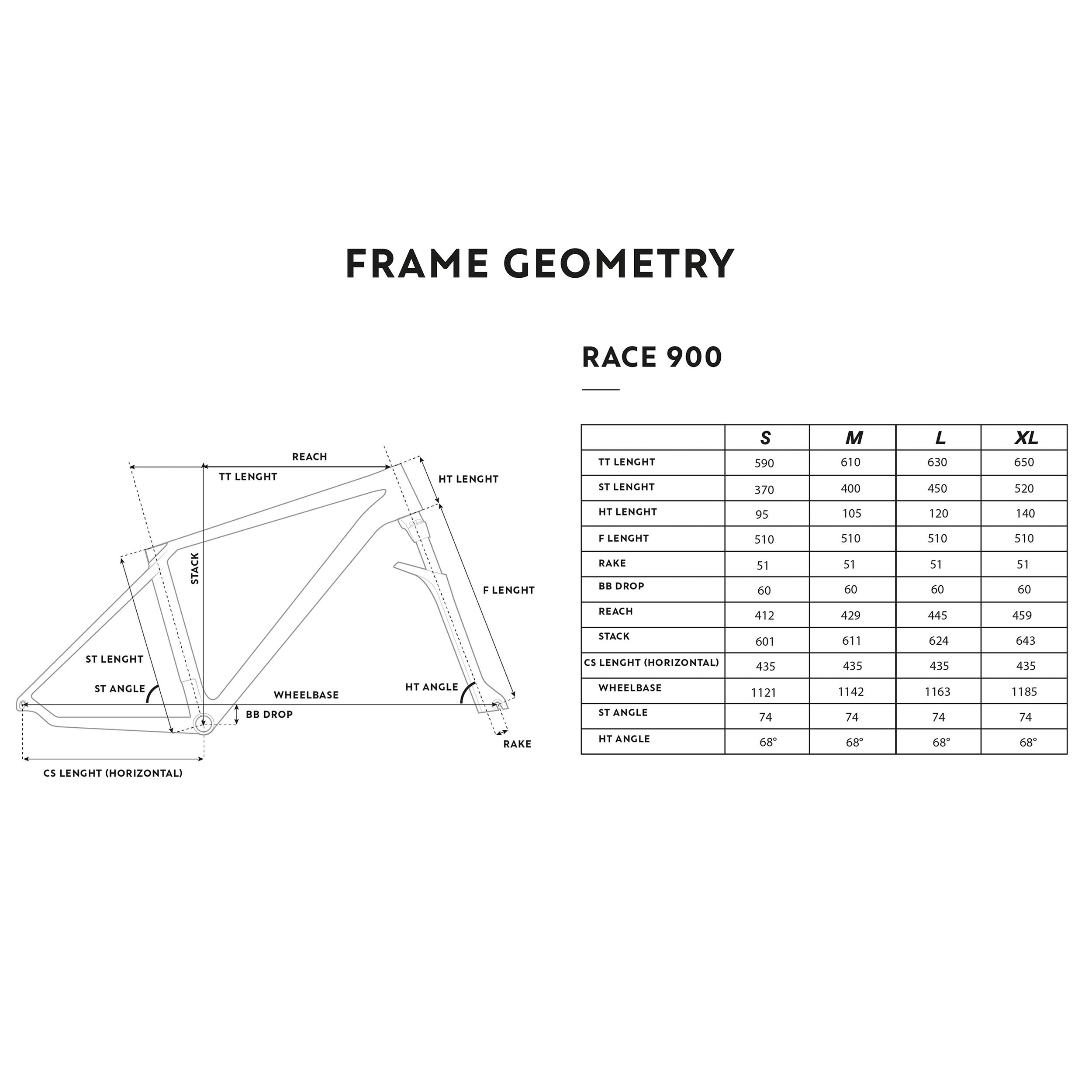

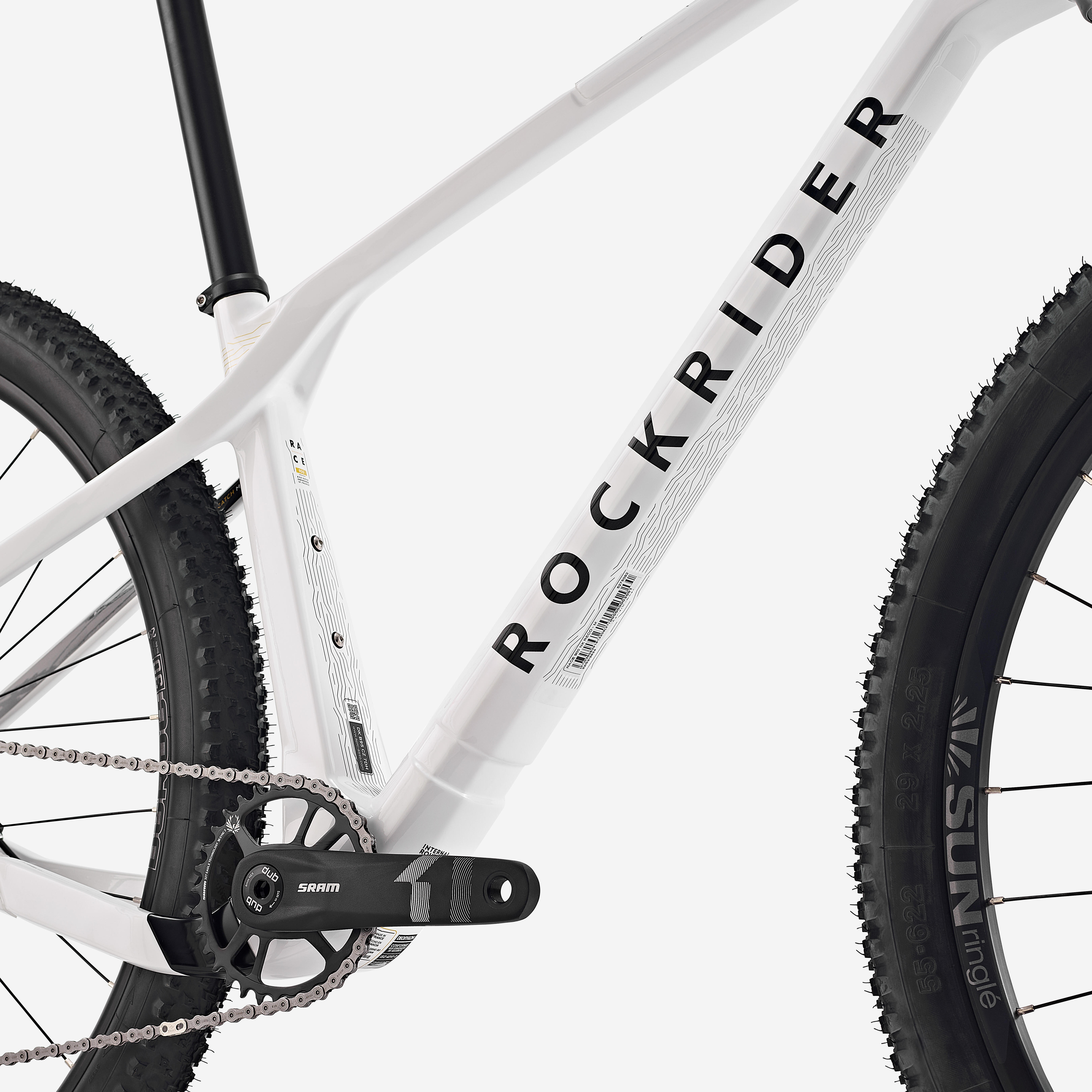

Frame
Full carbon with high modulus fibres
1030 g in size M (gross and without derailleur hanger)
31.6 mm seat post
Compatible with dropper posts (internal routing)
Thru axle
BOOST format
PressFit 92 bottom bracket
Compatible with 2 bottle cages
Sram UDH derailleur hanger
Integrated top tube protection (Effetto Mariposa)
Embossed to make it easier to fit your emergency inner tube
Frame warranty: 5 years
Frame paint warranty: 2 years
Pedals
Rockrider 520 Grip resin flat pedals
Tires
Front tyre
Vittoria Saguaro 29 x 2.25
tubeless ready
60 TPI beige sidewalls
ETRTO: 55-622
785 g
Rear tyre
Vittoria Saguaro 29 x 2.25
tubeless ready
60 TPI beige sidewalls
ETRTO: 55-622
785 g
Saddle and seat post
Rockrider Control Short Nose saddle
Steel rails
Weight: 270 g
31.6 mm aluminium seat post
Length: 350 mm (size S) and 400 mm (size M, L and XL)
285 g
Care tips
Your bike's equipment (drivetrain, brakes, etc.) will move around during the first few months of use. Please contact your nearest store's workshop to have your bike correctly adjusted.
Wheels
29" Sun Ringle Duroc 30 SRC Tubeless Ready wheels
Weight: 2070 g
HD freehub
Inner rim width: 30 mm
6-bolt rotors
32 round spokes
Sealed bearings
BOOST axles: 15 mm front and 12 mm rear
Fitted with rim tape: Tubeless Ready
