Saddle
Royal Vivo saddle
Length: 268 mm
Width: 178 mm
SEAT POST
Brand: Signum
Material: Aluminium
Diameter: 30.9 mm

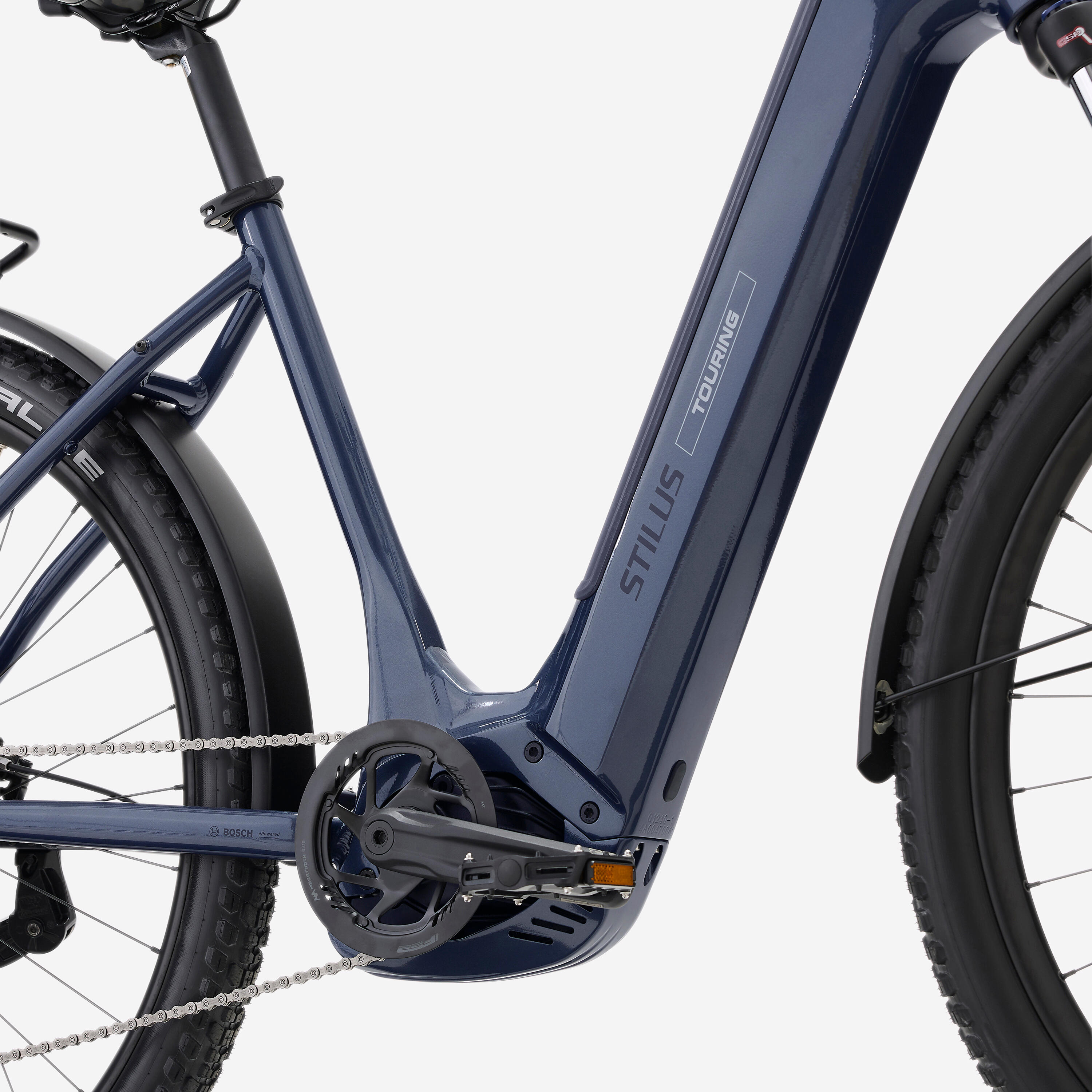

Motor
The Bosch mid drive motor guarantees powerful, natural and smooth pedalling up to 25 km/h. The 85 Nm torque propels you through challenging terrain and hills. The force you apply to the pedals is constantly adjusted thanks to the torque sensor.
5 assistance modes:
ECO: reduced assistance
Tour: constant assistance
Tour+: progressive assistance for natural pedalling behaviour
Sport/eMTB:powerful assistance
Turbo: sports assistance
Suspension fork
Suntour XCM32 ATB
100 mm travel
CONTROL SCREEN.
Bosch KIOX, advanced navigation functions, activation and deactivation of the assistance via the eBike Lock function
Brakes
Shimano MT200 dual-piston hydraulic disc brakes
180 mm centerlock discs
STAND
Ursus Wave adjustable side kickstand
FRAME
- Aluminium 6061
- High step-through
- Removable built-in battery
- Internal cable routing
Range
The PowerTube 750 is the most powerful and durable battery in Bosch's PowerTube range. It is designed for adventures on long and demanding routes.Its incredible 750 Wh power extends your journey so you can ride up to 130 km.
Tyres
Schwalbe Johnny Watts 29 x 2.35 tyres

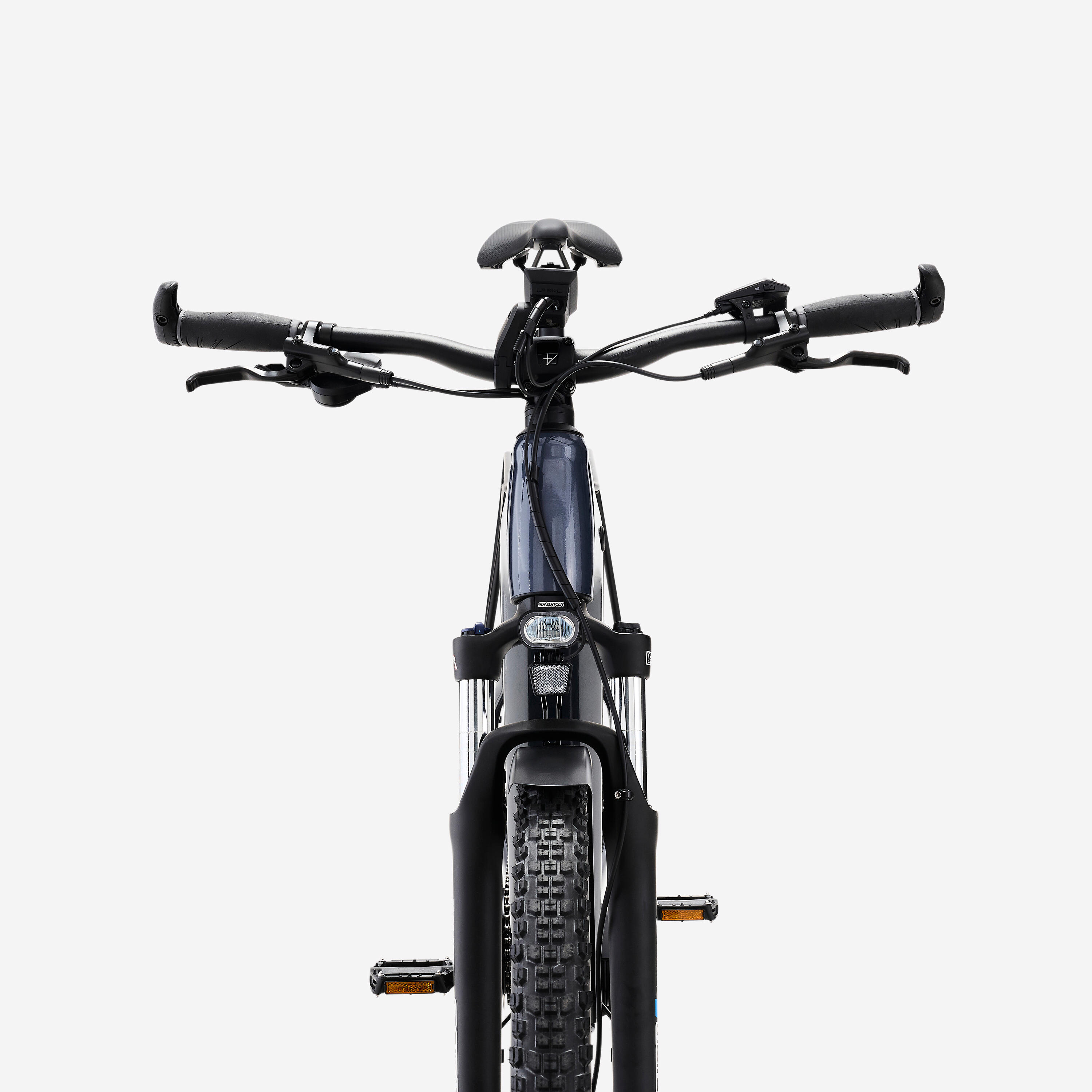

Lights
Front: Spanninga AXENDO 40 lux
Rear:Axa Blueline
Powered by the main battery
Grips
Hermans adrenalin with bar ends
Stem
Material: Aluminium
Length: 45 mm
Trailer compatibility
Compatible with all child and dog trailers on the market

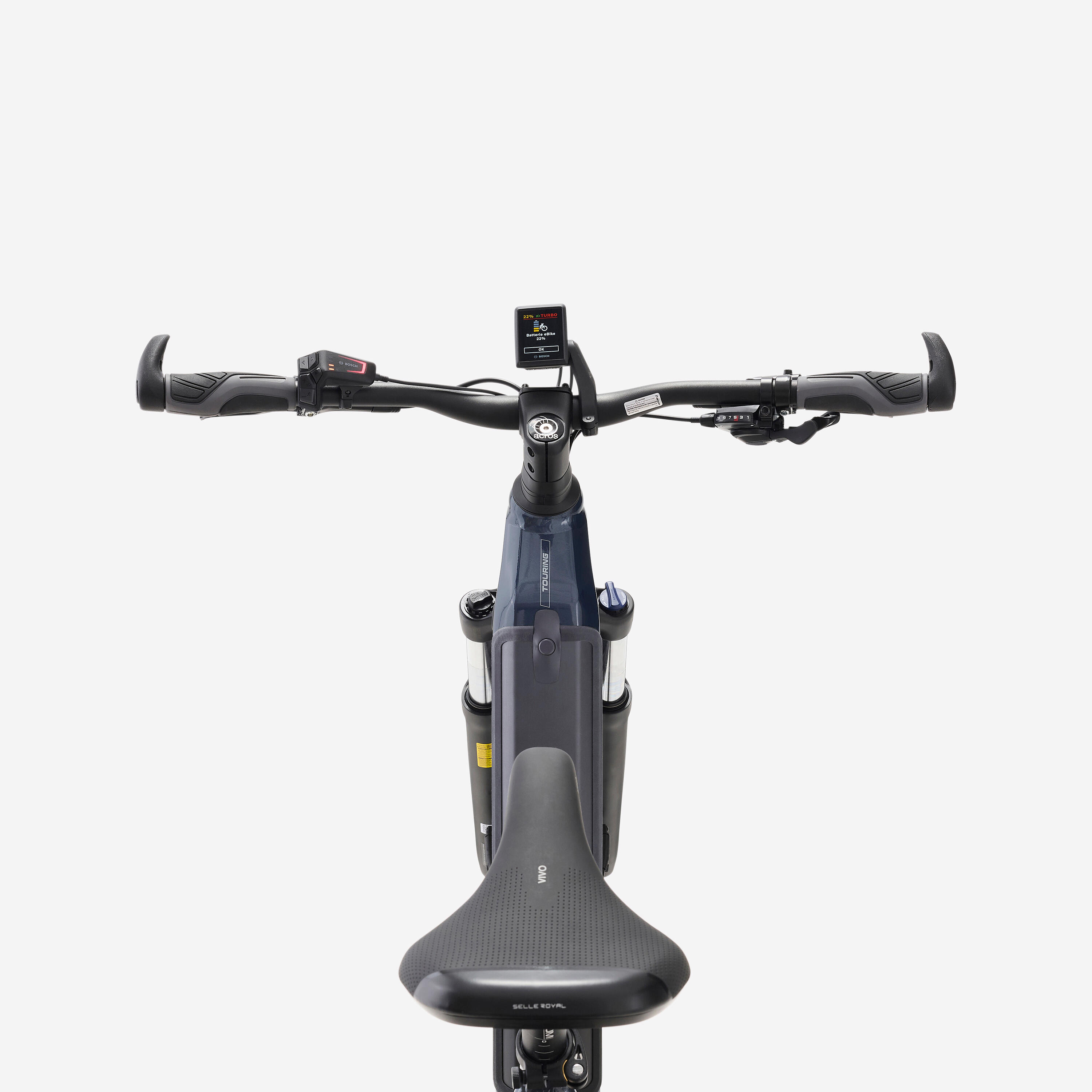

Handlebars
Material: Aluminium
Width: 700 mm
What size should you choose for your Stilus e-Touring bike?
3 sizes available: Size S from 1.50m to 1.65m
Size M from 1.66 m to 1.77m.
Size L from 1.78 m to 1.89 m.
If you are on the edge between 2 sizes: - Choose the smaller size for greater manoeuvrability and comfort (straighter back).
- Choose the larger size for a more stretched out position (better suited to speed).

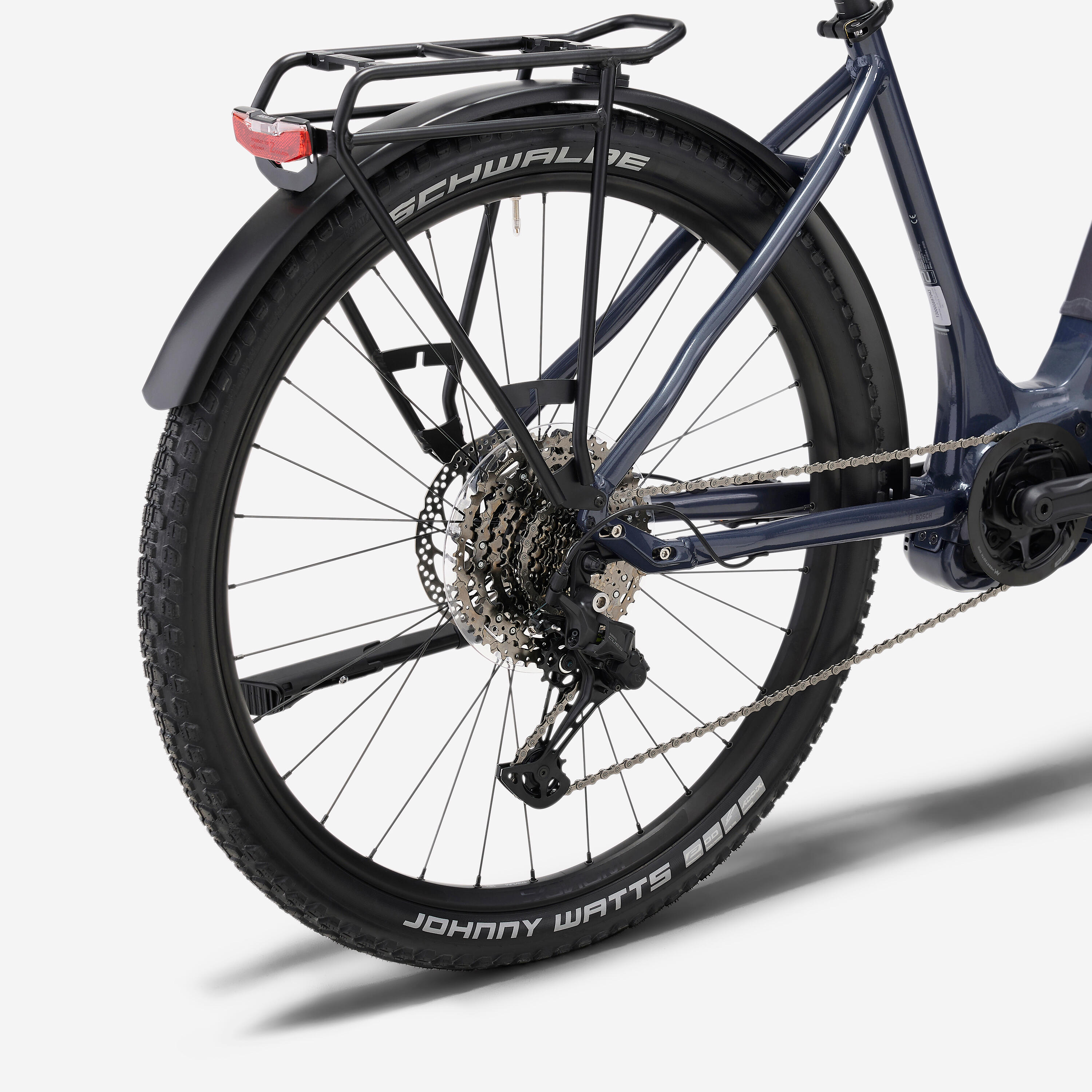

Wheels
29" Rodi TRYP 30 EVO wheels
Shimano TX505 hub
TRANSMISSION
Shimano CUES 1x11 drive train
Shimano CUES CS-LG700 11S cassette: 11-45
FSA single chainring bottom bracket for Bosch Gen4 motor:32 teeth
Shimano CUES RD U 8020 rear derailleur
Shimano Linkglide LG500 chain
Shimano CUES SL U8000 gear lever
FSA crank for Bosch Gen4 motor:170 mm
