SHIMANO
Ref.
8515727
2447416

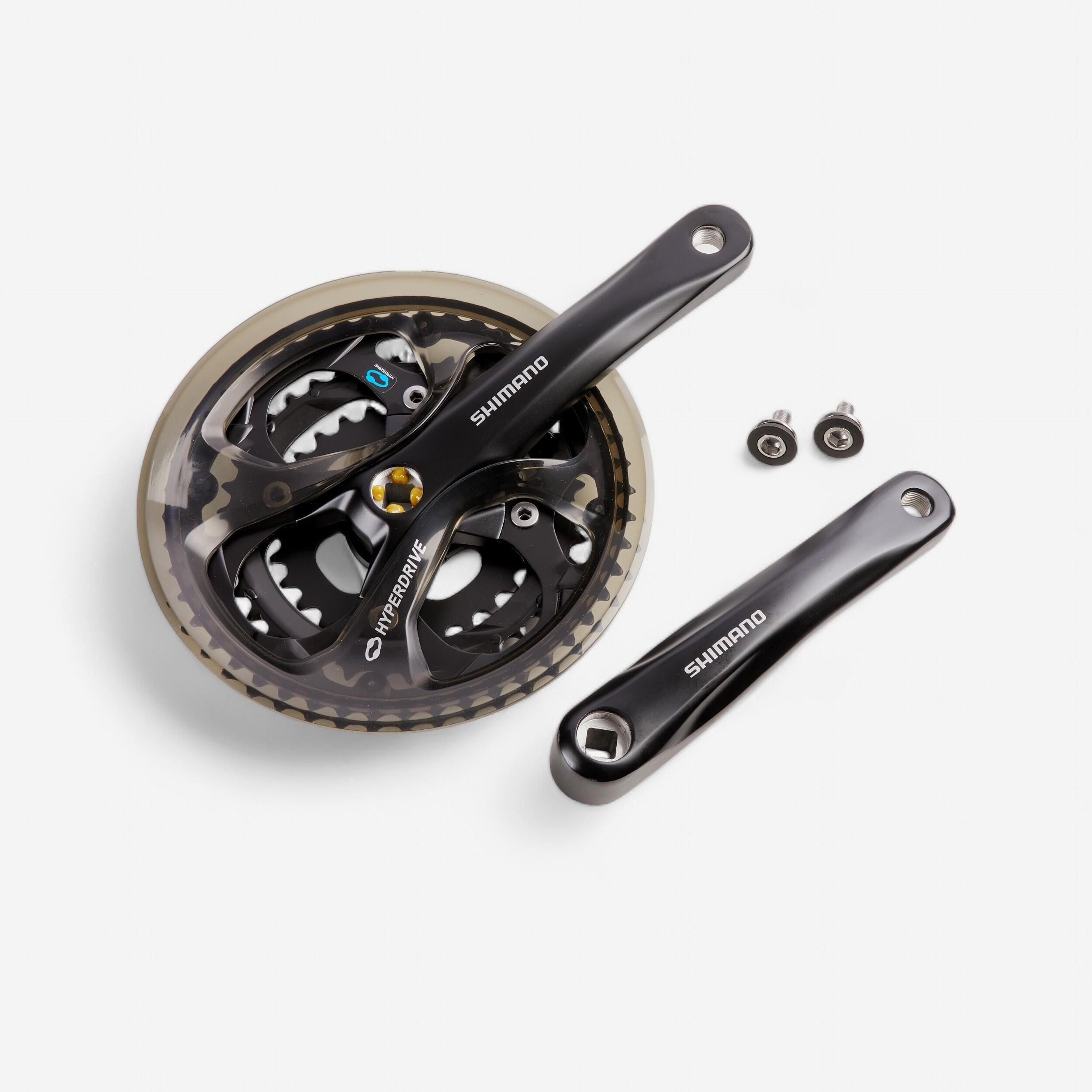

Chainset 48/38/28 7/8S HG Acera
€70.00
Tax included
Store Availability
Store Availability
Designed to replace your chainset.
BENEFITS
Compatibility
Bottom Bracket BSA: 68 mm, 73 mm
Capacity
1 chainset 1 protective ring 2 chainset screws
Repair
Repair your product and give your equipment a second life!TECHNICAL INFORMATIONS
Technical features
Series: Acera M360
Pedal arm material: aluminium
Chainwheel material: steel
Grading: 28/38/48
Pedal arm length:175 mm
Chain line: 50 mm
Q factor: 185.9 mm
Compatible bottom bracket width (with BSA bottom bracket): 68 mm, 73 mm
Pedal arm material: aluminium
Chainwheel material: steel
Grading: 28/38/48
Pedal arm length:175 mm
Chain line: 50 mm
Q factor: 185.9 mm
Compatible bottom bracket width (with BSA bottom bracket): 68 mm, 73 mm
Information
HyperDrive SG-X chainwheel
- built-in chain guard
- compatible with Dual SIS
- lacquered pedal arms and chainwheels
- stainless steel screws
- replaceable chainwheels
- for a 142 mm assembly width
- compatible with chain casings
- Shimano logo
- built-in chain guard
- compatible with Dual SIS
- lacquered pedal arms and chainwheels
- stainless steel screws
- replaceable chainwheels
- for a 142 mm assembly width
- compatible with chain casings
- Shimano logo
Capacity
- 1 x Shimano Acera FC-M361 chainset
- 1 x chain protection ring
- 2 x chainset screws
- without bottom bracket
- 1 x chain protection ring
- 2 x chainset screws
- without bottom bracket
Assembly tips:
Crank tightening torque: 35-50 Nm
Care tips
Remember to check your chainset fixing screws regularly. To avoid premature wear, regularly clean and lubricate your drivetrain using suitable products.
NEED HELP?
The technicians at your Decathlon store workshop are available to help you replace the parts of your bike. Feel free to ask them for help!
Tips for storage and maintenance
Restrictions on use
Get the compatibility and assembly checked by a technician
TESTS AND WARRANTY
Warranty
2 Years
