Product Description
•
Year: 2024 •
Range name: BianchiRange2024 •
Product type: Electric road bike (E-Road) •
Category name: Bike •

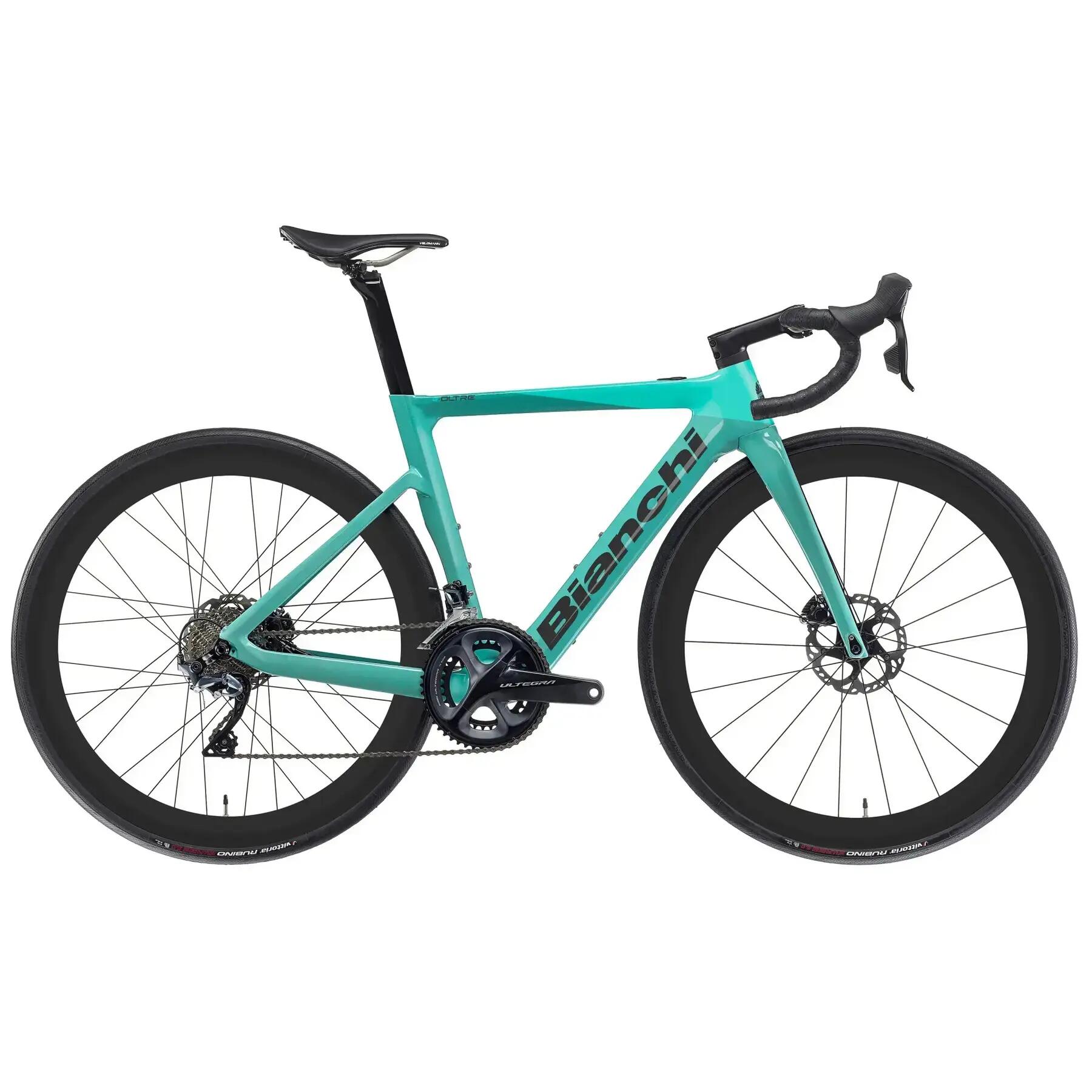

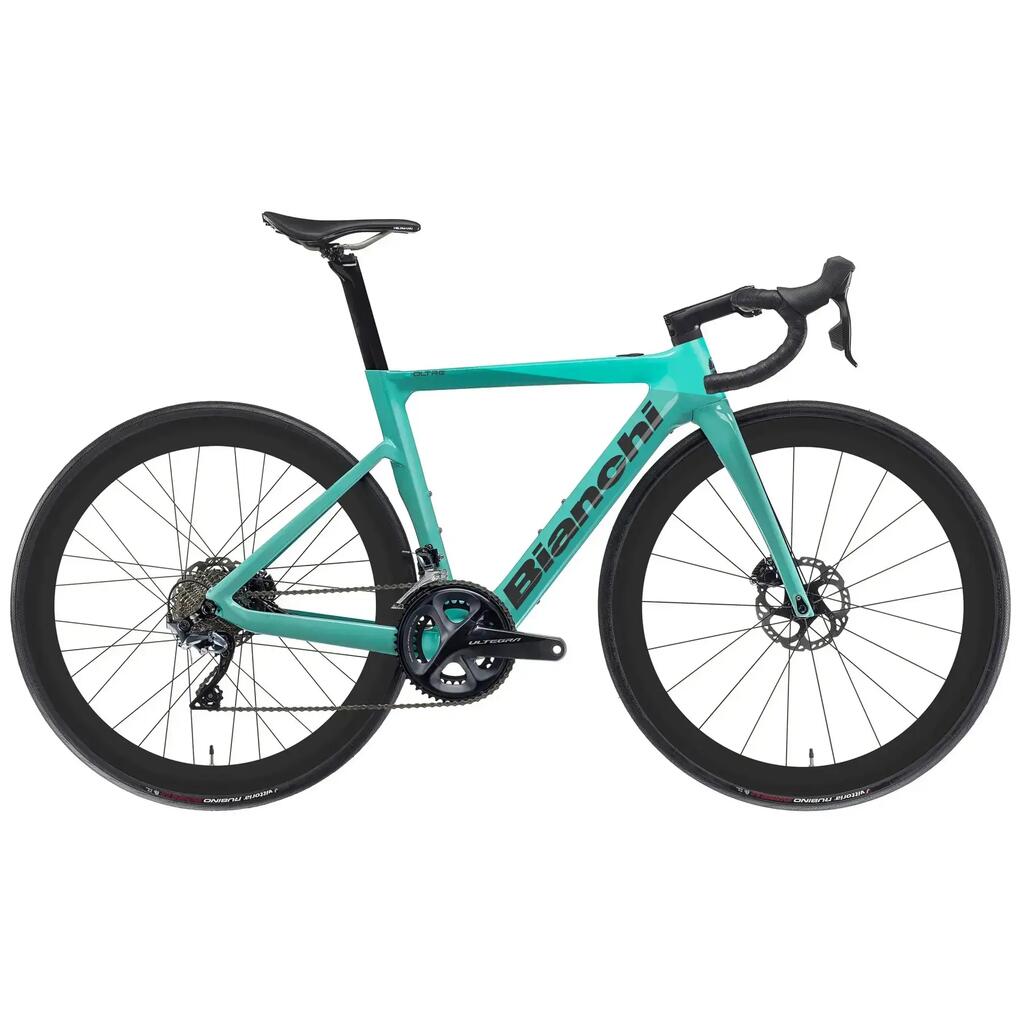

Model: Oltre E-Road •
Motor: Mahle X30 Drive Unit, 250W, torque 40Nm, iWoc ONE control unit •
Battery: Mahle iX250Wh integrated •
Frame: Oltre e-road in carbon, fully internal cable routing, compatible with mechanical and electronic groups, BB PressFit, flat mount disc brake, 135 mm spacing, sizes 47-50-53-55-57-59-61 cm •
Fork: full aerodynamic carbon, ICR, integrated head, flat mount disc brake, thru-axle 12x100 mm •
Headset: Acros / FSA with internal cable routing (ICR) •
Shifters: Shimano 105 12 speed •
Rear derailleur: Shimano 105 12 speed RD-R7100 •
Front derailleur: Shimano 105 12 speed FD-R7100 •
Crankset: Shimano 105 FC-R7100, Hollowtech II, 50x34T, length: 170 mm (47/50/53), 172.5 mm (55/57/59), 175 mm (61) •
Bottom bracket: integrated torque sensor Mahle •
Chain: Shimano 105 12 speed •
Cassette: Shimano 105 12 speed 11-34T (11-12-13-14-15-17-19-21-24-27-30-34) •
Brakes: hydraulic disc brakes integrated into the shifters •
Discs: Shimano RT86 160 mm rear (6 bolt) / Shimano MT800 160 mm front (Center Lock) •
Wheels: Velomann Plutonium carbon, 700c (21-622), profile 50 mm, 24 holes front / 32 holes rear, tubeless ready •
Tire: Vittoria Rubino V 28-622 TLR, G2.0, 100 TPI •
Stem: Velomann Viper AL6061, -7° tilt, semi-integrated cable routing, lengths: 90 mm (47), 100 mm (50/53), 110 mm (55/57), 120 mm (59/61) •
Handlebar: Velomann Aero Compact, diameter 31.8 mm, reach 74 mm, drop 116 mm, width: 400 mm (47-53), 420 mm (55-59), 440 mm (61) •
Grips: tape Bianchi Hexagon, thickness 2.5 mm, black •
Seat post: aerodynamic carbon, specific clamping system, adjustable offset +/- 35 mm, lengths: 300 mm (47-50), 350 mm (53-61) •
Saddle: Velomann GND Full-fit, steel-carbon rails, dimensions 262x145 mm
